SKF Brand original machine tool spindle bearing S71914ACB/HCP4ADGA 70x100x16 mm in stocks

Large Image : SKF Brand original machine tool spindle bearing S71914ACB/HCP4ADGA 70x100x16 mm in stocks

Product Details:

Place of Origin:	Sweden
Brand Name:	SKF
Certification:	ISO9001:2008
Model Number:	S71914ACBHCP4ADGA

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD600/PCS
Packaging Details:	standard carton
Delivery Time:	2 days after getting the order
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Precision Garde:	P4A	Delivery Time:	In Stocks
Brand:	SKF

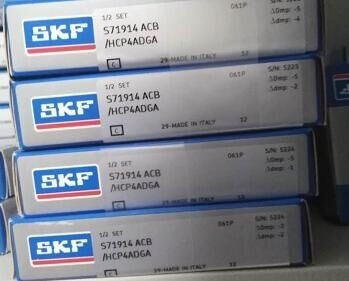

SKF Brand original machine tool spindle bearing S71914ACB/HCP4ADGA 70x100x16 mm in stocks

We/JinHang Precision bearing can offer SKF original S71914ACB/HCP4ADGA machine tool main spindle bearing with 70x100x32(16x2) P4A accuracy precision ,meanwhile we can offer crossed roller bearing,rotary table bearing,slewing bearing,spindle bearing ,rolling bearing and so on.

The bearing S71914ACB/HCP4ADGA technology data as following:

Bearing type	S71914ACB/HCP4ADGA
Size	70x100x32(16x2)
Inner dia:	70MM
Outer dia:	100 mm
Height:	32(16x2)
Precision grade	P4A
Delivery time	In stocks
brand	Original SKF
Application position	Machine tool main spindle

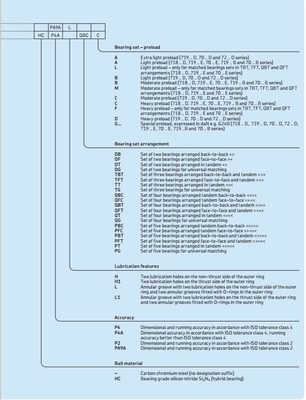

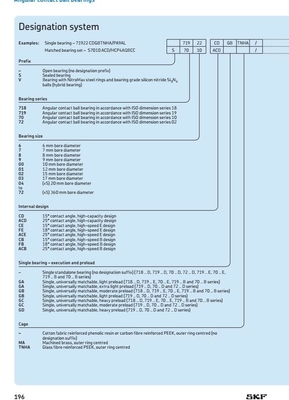

S: sealed

71914 :70X100X16mm

ACB: 25 Degree contact andle,high speed B design

HC:Bearing grade silicon nitride Si3N4(hybrid bearing

P4A: dimension and accuracy in accordance with ISO tolerance class 4,runing accuracy better than ISO Tolerance class 4

DG:Set of two bearing for universal matching

A:Extra light prelaod

SKF machine tool main spindle bearing S71914ACB/HCP4ADGA application:

Belt-driven CNC lathe spindle,unit for detecting defects on silicon wafter chips,electro-spindle in a horizontal machining centre,spindle in a horizontal machining centre,electro-spindle in a high -speed metal cutting machine,electro-spindle for an internal grinding machine.

There are a number of factors that go into the bearing selection process:

available space

loads (magnitude and direction)

precision and stiffness

speeds

operating temperature

vibration levels

contamination levels

lubrication type and method

Once a suitable bearing has been selected,there are several other factors that need to be

considered:suitable form and design of other components

in the arrangement appropriate fits and bearing internal clearance
