XR678052P4 Crossed tapered roller bearing 457.2x330.2x63.5 mm in stocks,used in vertical axis machines

All Products

Slewing bearing (633)

Turntable bearing (73)

Pinion gear (22)

Cylindrical roller bearing (397)

Rolling mill Bearing (132)

Tapered roller bearing (103)

Machine Parts (115)

Tandem Extruder Bearing (290)

Spherical roller bearing (145)

crossed roller bearing (215)

YRT Rotary table bearing (39)

Main Spindle Ball Bearing (646)

Thin section ball bearing (157)

Full complement cylindrical roller bearing (172)

Split roller bearing (135)

Spherical roller thrust bearing (102)

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

XR678052P4 Crossed tapered roller bearing 457.2x330.2x63.5 mm in stocks,used in vertical axis machines

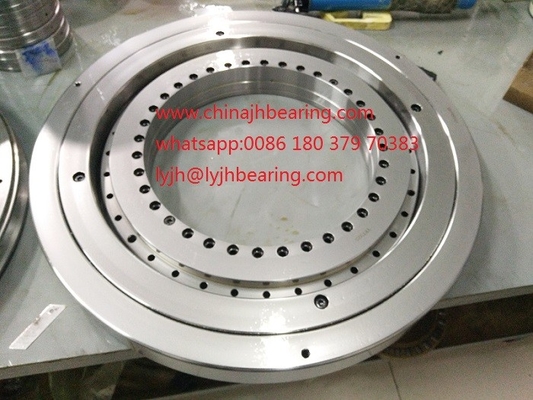

Large Image : XR678052P4 Crossed tapered roller bearing 457.2x330.2x63.5 mm in stocks,used in vertical axis machines

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	JHB or OEM brand
Certification:	Quality certificate
Model Number:	XR678052

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD1000
Packaging Details:	wooden case
Delivery Time:	2 days
Payment Terms:	Western Union, T/T
Supply Ability:	500 PCS/MONTHS

Contact Now

Detailed Product Description

Material:	GCr15SiMn	Delivery Time:	In Stocks
Package:	Wooden Case	Guarantee Period:	One Year

XR678052P4 Crossed tapered roller bearing 457.2x330.2x63.5 mm in stocks,used in vertical axis machines

XR678052 crossed tapered roller bearing belongs to high precision crossed roller structure,It will used in vertical axis machines, we can offer the assembly drawing and sample to customer
It can replace the import crossed tapered roller bearing with high precision grade bearing.
The crossed tapered roller bearing XR678052 technology data as follows:

Bearing type	Boundary dimension(mm)				weight	Remark
Bearing type	Inner dia	Outer dia	width	chamfer	kgs	XR678052 Bearing equal to SKF Bearing code:61566aA
XR678052	330.2	457.2	82.55	63.5	32	XR678052 Bearing equal to SKF Bearing code:61566aA

We JINHANG PRECISION BEARING can offer XR678052 Crossed tapered roller bearing service:

Delivery time	In stocks
drawing	Can offer assembly drawing

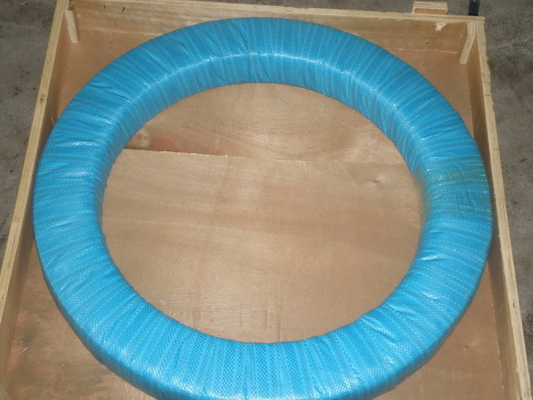

Package	Wooden case
Guarantee period	One year
Payment	T/T,WU
Shipping term	By sea or by air
sample	Offer sample available
Shipping time	It will takes 5 days by air

XR678052 Crossed tapered roller bearing features as following:
Two Rows of rings Rollers in the Space of One
Compactness / Small cross section
Reduced Cost
Design configuration gives Wide Effective Spread
Line Contact on Roller and Raceway (Precision class)
Maximum Accuracy of Rotation
High Stability
Greater Tilting Stiffness
TXRDO configuration
Light roller design
Nylon separators
Easy assembly and setting
Low inertia
Low running torque
Double outer race
Single top inner race
Single bottom inner race
“C” rollers
“A” rollers
Nylon separat
XR678052P4 Crossed tapered roller bearing 457.2x330.2x63.5 mm in stocks,used in vertical axis machines

XR678052 crossed tapered Bearing quality control:

JinHang Precision bearing strictly enforced in accordance with the process of production and quality standards, each link has a rigorous quality control. 100% inspection of manufactured products, each product has a unique product number, to ensure product trace ability.

Description:XR AND JXR Crossed roller thrust bearing product list as follows:

Bearing type	dimension (mm)			Basic Dynamic load rating		weight(kgs)
Bearing type	d	D	T	radial load rating	Axial load rating	weight(kgs)
XR496051	203.2	279.4	31.75	41	49.2	6.5
JXR637050	300	400	37	47.2	60	13
JXR652050	310	425	45	61.6	76.5	20
XR678052	330.2	457.2	63.5	80	98.4	35
JXR699050	370	495	50	70.2	89.2	30
XR766051	457.2	609.6	63.5	106	133	51
XR820060	580	760	80	106	209	100
XR855053	685.8	914.4	79.375	180	224	150
XR882055	901.7	1117.6	82.55	225	297	185
XR889058	1028.7	1327.15	114.3	283	374	400
XR897051	1549.4	1828.8	101.6	326	489	500

We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.
Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.
Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
