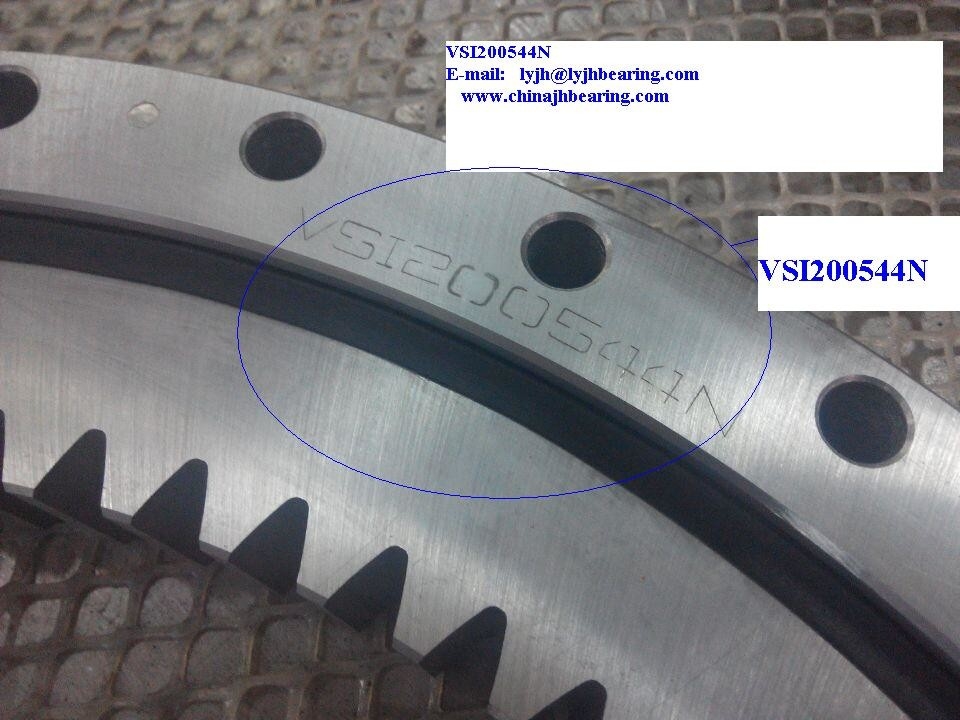

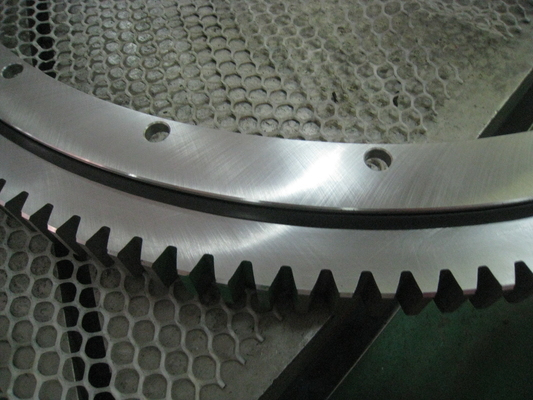

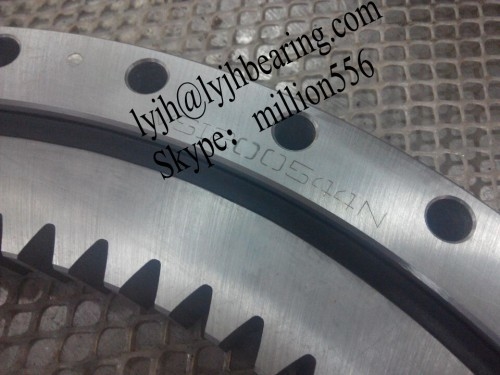

Slewing ring code: VSI200544N, 616X444X56mm,50Mn material,C0 Clearance ,in stock
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | E D Class | Seals Type: | Open |
|---|---|---|---|
| Rolling: | Ball | Material: | 50Mn 42CrMo |
| Package: | Wooden Case | Clearance: | C1 C2 C3 |
| Hardness: | 55-60 HRC |
Slewing ring code: VSI200544N, 616X444X56mm,50Mn material,C0 Clearance ,in stock

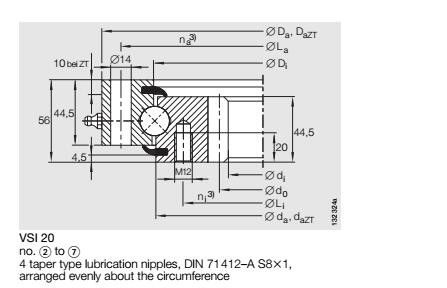

VSI 200544 N Bearing belongs to INA Four point contact bearing, standard series 20, internal gear
teeth, selectable internal clearance, sealed, lubrication nipple on circumference of ring without teeth.The lubrication by gease or oil available.
VSI200544N slewing beairng Belongs to four point contact ball slewing bearing with internal gear,the dimension:616x444x56mm, the specification as follows:
Description:
Slewing ring code: VSI200544N, 616X444X56mm
Outer dia:616mm
Inner dia:444 mm
Height:56mm
| Bearing code | Outer dia(mm) | Inner dia(mm) | Height(mm) |
| VSI200544N | 616 | 444 | 56 |
Weight:42KGS
The material:42CrMo,50Mn available
The raceway hardness:55-60 HRC
The clearance: C0 C1 C2 C3
The package: standard wooden case
Rolling:ball
Gear teeth :
Do=456mm
m=6
Z=76
VSI200544 N Slewing ring application as following:
Vibratory grinding unit
Tandem roller
Vertical machining centre tool changer
We had offered the bearing VSI200544N to Germany customer. So if you need the bearing details, Please send me by e-mail.
