71900 angular contact ball bearingspecification/working speed,in stock,10x22x6 mm,P4P2 grade

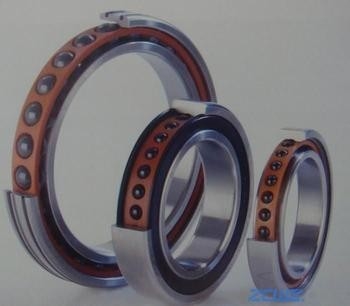

Large Image : 71900 angular contact ball bearingspecification/working speed,in stock,10x22x6 mm,P4P2 grade

Product Details:

Place of Origin:	China
Brand Name:	JHB
Certification:	Quality Certificate
Model Number:	71900

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	USD50
Packaging Details:	vacuumize bag
Delivery Time:	2 days
Payment Terms:	T/T,Paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Material:	GCr15	Clearance:	C0
Lubrication:	No.2 Li Base Grease	Delivery Time:	In Stock

71900 angular contact ball bearingspecification/working speed,in stock,10x22x6 mm,P4P2 grade

71900 high speed precision angular contact ball bearing belong to machine tool main spindle bearing. 71900 Bearing is a popular item that could be used in different machine center., the dimensions are 10x22x6 mm , 71900 angular contact ball Bearing with different matching , contact angle C=15 Degree or 25 degree,with P4 P2 high precision accuracy grade.

Type: 71900 angular contact ball bearing
Dimension: 10x22x6 mm/Metic
ID(inner diameter)/Bore:10mm
OD(outer diameter):22 mm
Width/Height/thickness: 6 mm

71900 angular contact ball bearingspecification/working speed,in stock,10x22x6 mm,P4P2 grade

Dimension series:
718 Urltra- light series
719 light series
70 medium series
72 heavy series

Contact angular “
C:15 degree
F:18 degree
AC:25 degree

Load:
EL: Urltra light
L:light
M:Moderate
H:Heavy

Bearing arrangement:

SU: Individual bearing,suitable for any arrangement
DU Duplex set, universal bearings
TU Triplex set, universal bearings
QU Quadruplex set,universal bearings
PU Quintuplex set,universal bearings

71900 bearing is super precision ball bearing for machine center main spindle, it's particularly suitable for supporting high axial forces, high speed ,high precision accuracy . If you have just Interesting 71800 bearing, You can call us or send enquiry, we would offer the prices, packing, and more detailed information on the 71800 bearing .

We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:5-10 days.
71900 the Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The Inner ring and outer ring hardness: 58-62HRC
The 71900 manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The inspection including Heat treatment inspection,Contour measurement,accuracy measurement,vibration measurement,full dimension tolerance inspection.

The package: standard export wooden case or carton boxes.

We/JinHang precision bearing offer 71900 sample and assembly drawing,if you need.

71900 angular contact ball bearing application as follows:
Machining centre,Turning spindle,Milling spindle for very high speeds,Grinding spindle,High frequency motor spindle,Grinding,Turning,Drilling, motor,Milling, drilling,
Universal.

Besides of 71900 ,We can offer RA5008UUCC0,RA6008UUCC0,RA8008UUCC0,RA7008UUCC0,RA9008UUCC0,RA11008UUCC0,RA12008UUCC0,RA10008UUCC0,RA13008UUCC0,RA14008UUCC0,RA15008UUCC0,RA16013UUCC0,RA170013UUCC0,RA18013UUCC0,RA19013UUCC0,RA20013UUCC0 , RB2008UUCC0, RB2508UUCC0,RB3010UUCC0 ,RB3510UUCC0,RB4010UUCC0,RB4510UUCC0 ,71800 and customized crossed roller bearing type.

71900 angular contact ball bearingspecification/working speed,in stock,10x22x6 mm,P4P2 grade

YRT series rotary table bearing product as follows:

Bearing No.	Principal dimension(mm)								Weight (kg)
Bearing No.	d	D	H	H1	C	d 1	dn	dm
YRT50	50	126	30	20	10	105	63	116	1.6
YRT80	80	146	35	23.35	12	130	92	138	2.4
YRT100	100	185	38	25	12	160	112	170	4.1
YRT120	120	210	40	26	12	184	135	195	5.3
YRT150	150	240	40	26	12	214	165	225	6.2
YRT180	180	280	43	29	15	244	194	260	7.7
YRT200	200	300	45	30	15	274	215	285	9.7
YRT260	260	385	55	36.5	18	345	280	365	18.3
YRT325	325	450	60	40	20	415	342	430	25
YRT395	395	525	65	42.5	20	486	415	505	33
YRT460	460	600	70	46	22	560	482	580	45
YRT580	580	750	90	60	30	700	610	720	89
YRT650	650	870	122	78	34	800	680	830	170
YRT850	850	1095	124	80.5	37	1018	890	1055	253
YRT950	950	1200	132	86	40	1130	990	1160	312
