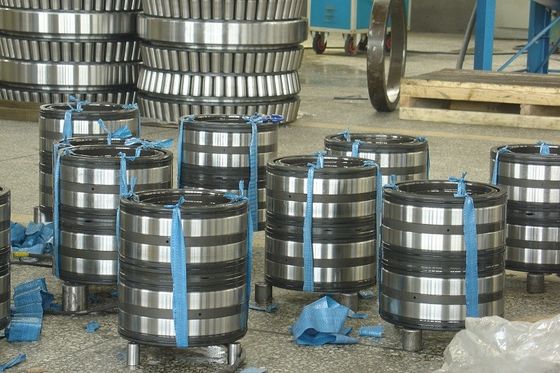

LM258648DW/610/610D tapered roller bearing 317.5*422.275*269.875mm used for work roll





Four row tapered roller bearing LM258648DW/610/610D mainly used for work rolls or intermediate rolls,carry both of radial load and axial load at a time.Adjustment of internal clearance is not required,facilitating handling open type is also available.



LM258648DW/610/610D tapered roller bearing detail as following:

Name	LM258648DW/610/610D
Boundary dimension	317.5*422.275*269.875mm
Outer dia:	422.275 mm
Inner dia:	317.5 mm
Height:	269.875
Bearing Material	GCr15SiMn
Cage	Steel cage
application	Roll neck bearing for rolling mill Cold roll machine for work roll
HS Code	8482200000
Weight	107 KGS
Delivery time	45 days
Package	Strong wooden case



Four-row tapered roller bearings are the one kind of roll neck bearings,their radial and axial loading capacity are high,can carry heavy axial loads in two directions,and their radial loading capacity is 3 times heavier than singe-row tapered roller bearings, but limiting speed is lower.They can be used as axial locating bearings in two directions because they are able to limit axial displacement in two directions within axial clearance. The radial and axial clearance also can be adjusted by changing the width of spacer between inner and outer rings.
Four-row tapered roller bearings are mainly used in the working roll necks of hot or cold rolling mills, and roll neck of cogging mills.
They usually clearance fit with roll necks to being mounted and dismounted conveniently.
Steel pressed cages are usually used in four-row tapered roller bearings,and pin-type cages are for large-size ones.



The four row tapered roller bearings LM258648DW/610/610D used for integrated lins,Such as :Continuous Casting, Converter Gear Box,Mill roller, Flying shear, Pinch Pass Mill, Shears, Hoisting Machine,etc.
Case:Bearing for 650 850 950 1100 hot strip rolling mills, Bearings for 1450,1500,1550,1580 ,
1700, 1750,1780 rolling mills,Bearings for 1780 Stainless Steel Hot Rolling mills and Cold rolling mills,Bearings for Channel Type steel Rolling Mills, Bearings for Continuous Casting,
Bearings for Flying Shear of Hot Rolling Mills,Bearings for Tilting Equipment for Converters,Bearing for Converter Truncheon and so on.
Design Attributes
Four single cups for optimum load sharing.
Cup spacers available with or without lube groove and holes.
Improved surface finishes to enhance lubrication performance.
Inboard and outboard cone face slots that reduce cone face wear.
Spiral bore grooves with blended radii to eliminate roll neck damage.
Case-carburized components to improve toughness and increase fatigue life.
Patented seal designs with improved contact geometry for enhanced sealing.
Enhanced roller profiling for even load distribution, which reduces edge stress.
No central cone or cup spacers to minimize number of components to be handled.
Effective sealing at cup outer diameter (OD) to seal contaminants away from bearing OD and chock bore.
