offer YRT260 rotary table bearing price and stocks C-axis CNC Machine center 260x395x55mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | GCr15SiMn | Accurate: | P4 Grade |
|---|---|---|---|
| Package: | Wooden Case | Delivery Time: | 2 Days In Stock |

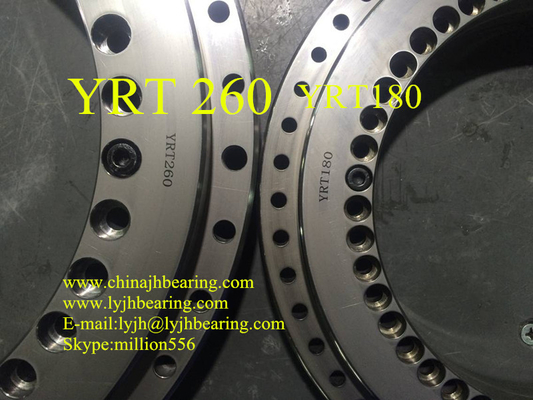

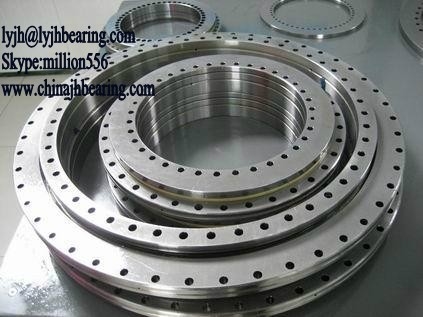

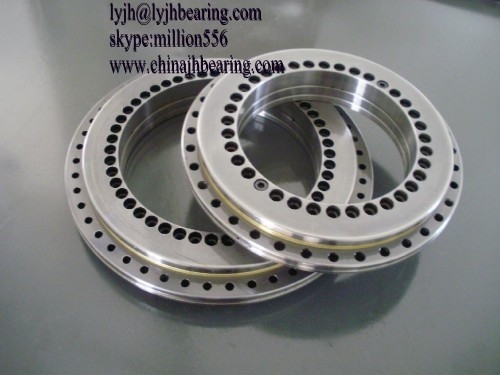

YRT260 rotary table bearing C-axis for turret equipment CNC Machine tool center numerical machine 260x395x55mm in stocks
In Oct we had offered the YRT260 rotary table bearing to Italy customer,The bearing YRT260 Would used for C-axis turret equipment with CNC Machine tool center numerical machine rotary table.
YRT260 Belongs to high accuracy P4 garde with three row cylindrical roller bearing structure.
YRT260 Bearing advantage as following:
High rigidity
High carrying capacity
Particularly high rotation accuracy
Can bear axial load/radial load
YRT260 rotary table bearing dimension as follows:
| Boundary dimensiom(mm) | Basic load rating(KN) | ||||||
| YRT260 Bearing | Inner dia | Out dia | height | Axial load(KN) | Radial load(KN) | ||
| 260 | 395 | 55 | Dynamic | static | Dynamic | static | |
| 160 | 1060 | 93 | 290 | ||||
As a result of the strictly required tolerance, so It would required carefully when per process.
From the lathe process to heat treatment process and grinding process,we would keep record the result. We would carry out the three inspection rule, first It will inspected by worker,second the mutual inspection, third spot check by leader, to make sure zero defection. All the parets will be 100% insepction to assure the good quality.
For the original material we would used qualitative carbon steel , the heat treat ment can reach to HRC58-62.For YRT Bearing series, most of the items 90% we had in stock, if you need urgent, It can shipping 3-5 days when confirmed the order.

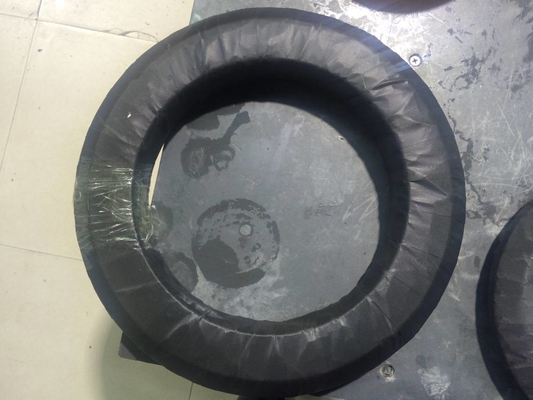

The package we will used the strong export wooden case to assure the protect the bearing.
Meanwhile, the YRT50 YRT100 YRT150 YRT180 YRT 200 YRT260 YRT325 YRT395 YRT460 YRT580 YRT650 in stock,for YRT850 bearing, the delivery time about 45 days if get the order.
