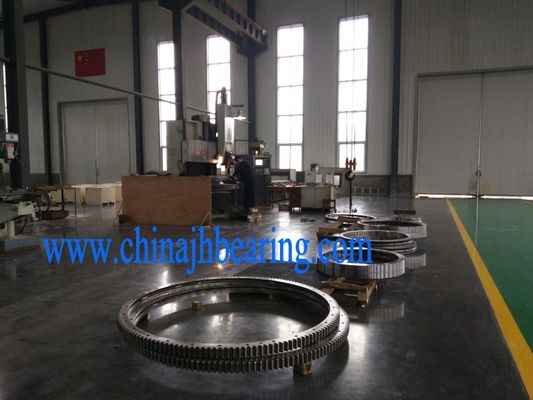

1092DBS101Y ball slewing bearing with external teeth,1358X1092X125mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P0 P6 P5 | Seals Type: | Doulbe Sealed |
|---|---|---|---|
| Material: | 50Mn | Sample: | Offer Sample Available |
| Bearing Code: | NSK |
1092DBS101Y four point contact ball slewing bearing with external teeth,1358X1092X125mm
1092DBS101Y Belong to four point contact ball slewing bearing with external teeth,1358X1092X125mm,It is NSK slewing bearing code,we/JinHang Precision can manufacture NSK bearing code,and replace it. It will help the customer to reduce the cost and save some time.
We had offered the bearing 1092DBS101y to our heavy industry equipment customer ,Now We will introduce Slewing bearing 1092DBS101y specification as follows:
| Slewing bearing type | 1092DBS101Y with external teeth |
| Dimension: | 1092DBS101Y |
| Outer dia: | 1358 mm |
| Inner dia: | 1092mm |
| Height: | 125 mm |
| Weight | 165Kgs |
| Outer ring hole distribute | Not equally distribute |
| Inner ring hole qty | Equally sapce |
| Outer ring and inner ring material | 50Mn |
| Ball bearing | LYC ball Brand ,GCr15SiMn |
| Lubrication | Grease lubrication |
092DBS101Y Slewing bearing external teeth parameter as follows:
| No of teeth | Z=92 |
| Press angle | A=20 degree |
| M | X=12 |
1092DBS101Y slewing bearing transport and storage:
Slewing bearing required careful handing
Slewing bearing should always be transported and stored in horizontal position and be stored in dry roofed areas.
USE eyebolts for horizontal handling,Impact,particularly in radical direction,must be avoided.
The surface of slewing bearing should be applied with anti-corrosion oil,and the anti-corrosion period is 6 months,longer storage(as backup,for example) periods will require special perservation
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.
1092DBS101Y Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
more
1092DBS101Y bearing application as following:
Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
