VSI200544N slewing bearing with internal gear 444x616x56mm
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | 50Mn | Seal: | Double Seal |
|---|---|---|---|
| Oil: | Grease 2 | Package: | Strong Wooden Case |
VSI200544N slewing bearing with internal gear 444x616x56mm
We/JINHANG Precision Bearing offer crossed roller slewing bearing and VSI200544N four point
Contact ball slewing bearing.The slewing bearing including external teeth,internal teeth,and without teeth.according to the machine working condition,we can design the Non-standard dimension to meet the customer required.
Four point contact ball slewing bearing VSI200544N, standard series 20, internal gear
teeth, selectable internal clearance, sealed, lubrication nipple on circumference of ring with internal gear teeth
VSI200544N four point contact ball slewing bearing specification as follows:
| Slewing bearing type | VSI200544N bearing |
| Boundary dimension: | 716X546XD56 mm |
| Outer dia: | 716 mm |
| Inner dia: | 546 mm |
| Height | 56mm |
| Gear teeth parameter: | |
| Gear teeth | Internal gear teeth |
| do | 456 |
| m | 6 |
| z | 76 |

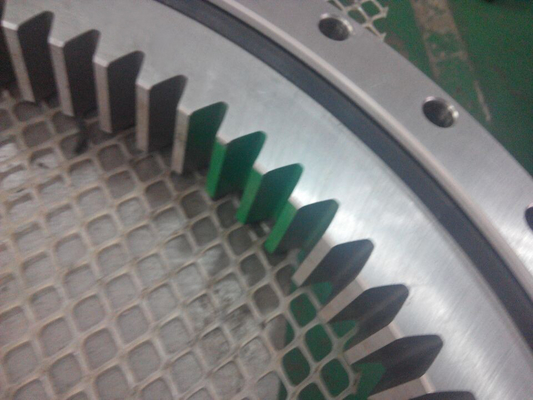

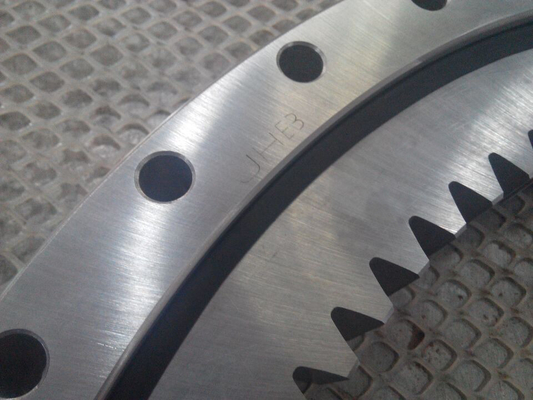

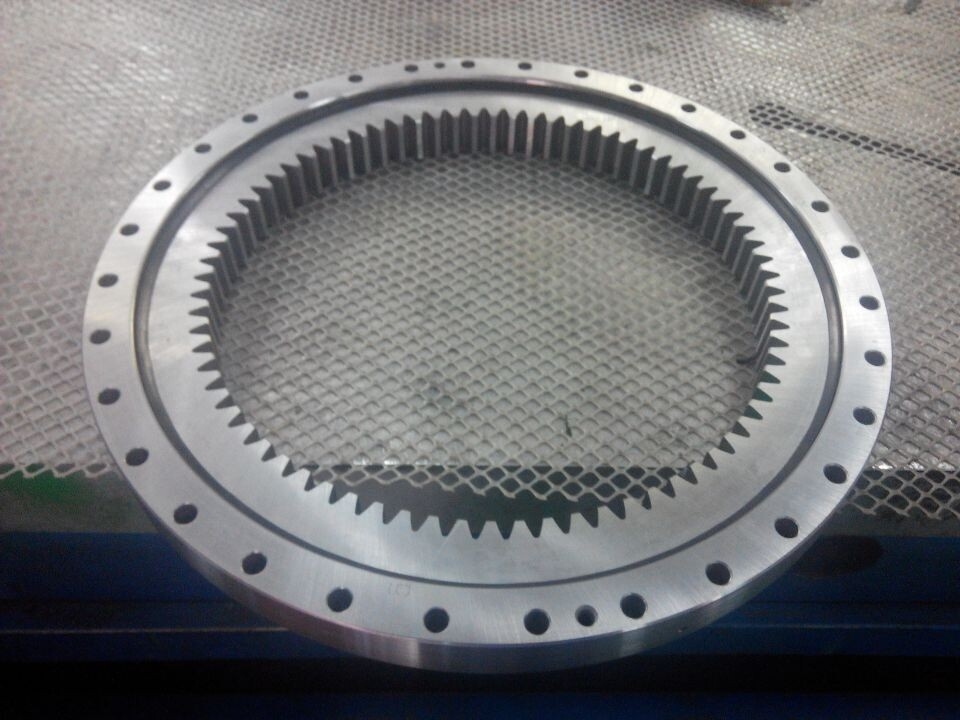

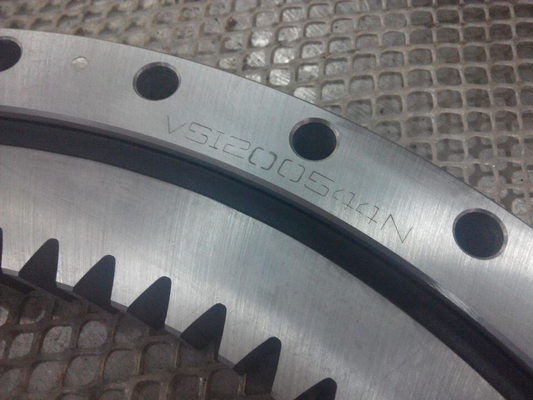

VSI200544N Slewing bearings plug as the pictures:
VSI200544N Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing table
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers equipment
• tunnel boring machines
• and so on
