Tandem thrust roller bearings for twin screw extruder T6AR1452A2E M6CT1452A2 14*52*151MM

Tandem thrust roller bearings for twin screw extruder T6AR1452A2E M6CT1452A2 14*52*151MM

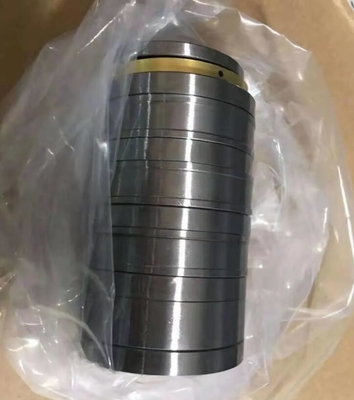

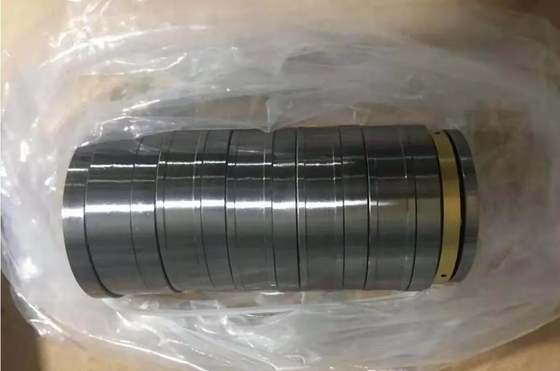

Tandem bearings T6AR1452A2E M6CT1452A2 consist of several axial cylindrical roller bearings arranged in line,The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. It have the characteristics of small radial cross-sectional size, compact structure, large axial load capacity, uniform load of each row of rollers, wear resistance, low vibration noise and long life

Series bearings T6AR1452A2E M6CT1452A2 have the following structural types:

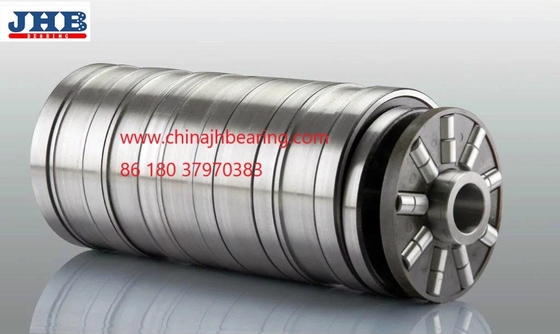

The basic type tandem bearing is to connect the shaft ring, the seat ring and the roller-cage assembly through the elastic spacer. This type of bearing is a separate structure, the parts can be disassembled, and it must be carefully installed and disassembled according to the numbering sequence provided by our company.

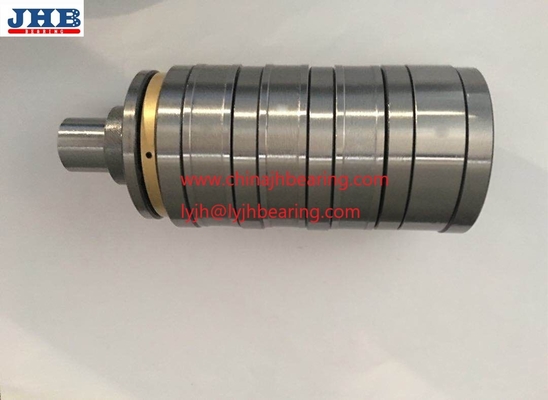

The Series bearings T6AR1452A2E M6CT1452A2 with shaft is a modified structure bearing. A shaft is inserted in the inner hole of the basic tandem bearing, and the bearing is fixed on the shaft with an elastic lock ring. The bearing parts of this type are inseparable, and it is very convenient to install and dismount the whole bearing during use.

Series bearings with sleeve, sleeve is sleeved on the outside of the basic tandem bearing.

Series bearings T6AR1452A2E M6CT1452A2 application as following:
It is mainly used for parallel twin screw extruder in rubber and plastic industry, and also used in screw press in oil processing industry, deep hole drilling rig for well drilling and pipe laying and drawing machine.

Characteristics of Tandem bearing :
Multi-Stage cylindrical roller thrust bearings(Tandem bearings) has the characteristics of limited radial space, high axial forces, equal support of all the rows of rollers and long operating life, and is the ideal spindle of parallel screw extruder.
Product Description:
Tandem thrust cylindrical roller bearings with small radial cross section size, compact structure, large axial load capacity, each column roller uniform load, wear resistance, small vibration noise and long life and other characteristics, is the ideal of parallel twin screw extruder screw spindle bearing.Users according to screw center distance, space and load size in our company to choose two, three, four, five, six, seven or eight columns tandem bearings.

We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.

Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
