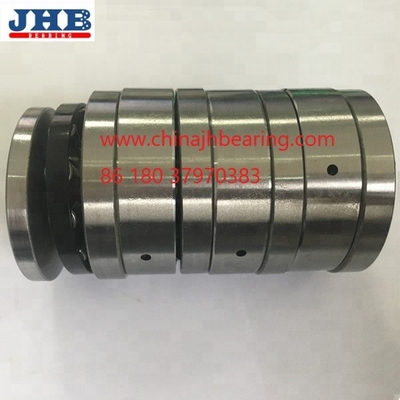

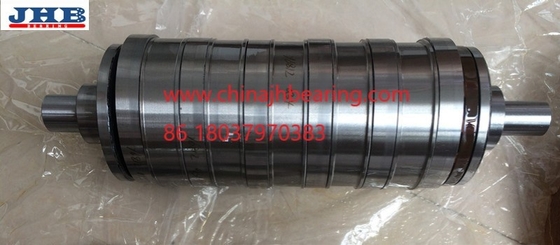

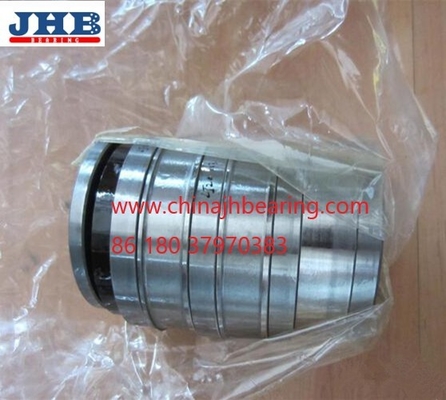

Twin screw gearbox tandem bearing T4AR2385 M4CT2385 23*85*129.5mm 4 row roller

Twin screw gearbox tandem bearing T4AR2385 M4CT2385 23*85*129.5mm 4 row roller

 Tandem bearings T4AR2385 M4CT2385 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T4AR2385 M4CT2385 with size 23*85*105MM, the inner diameter:23 mm, the outer diameter:85mm, the total height:129.5mm

 We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.

Tandem bearings consist of several axial cylindrical roller bearings arranged in line, Figure 1. A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. Figure 3, page 3, shows the power flow in a tandem bearing.

 Characteristics of Tandem bearing :
Multi-Stage cylindrical roller thrust bearings(Tandem bearings) has the characteristics of limited radial space, high axial forces, equal support of all the rows of rollers and long operating life, and is the ideal spindle of parallel screw extruder.
Product Description:
Tandem thrust cylindrical roller bearings with small radial cross section size, compact structure, large axial load capacity, each column roller uniform load, wear resistance, small vibration noise and long life and other characteristics, is the ideal of parallel twin screw extruder screw spindle bearing.Users according to screw center distance, space and load size in our company to choose two, three, four, five, six, seven or eight columns tandem bearings.

Tandem bearings offer an optimum solution wherever the following requirements apply:
■ small radial design envelope
■ high axial forces
■ long operating life
■ low frictional energy.

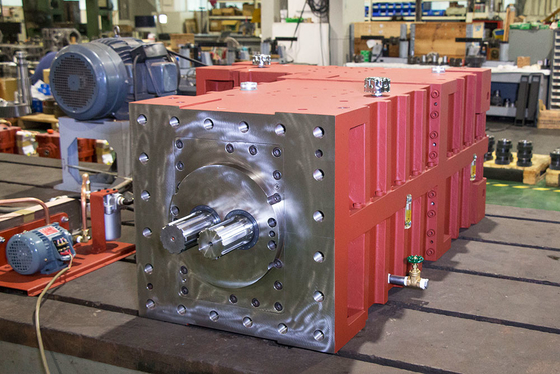

Tandem bearings have proven effective principally in gearboxes for single and twin screw extruders in the rubber and plastics industry.
Other possible applications include:
■ deep hole drilling equipment
■ friction welding machines.

Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service
