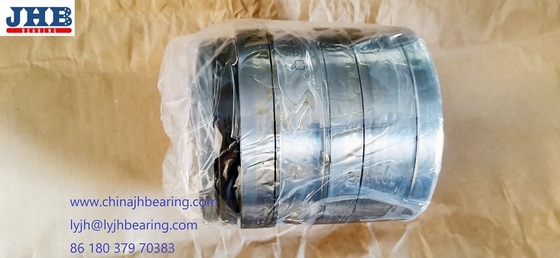

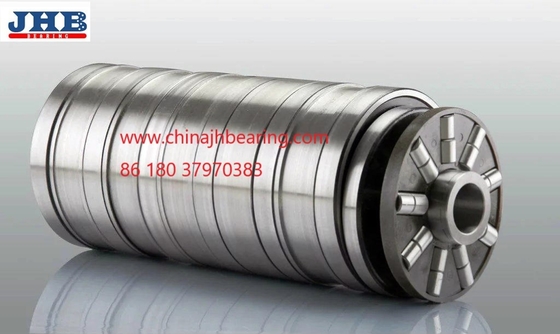

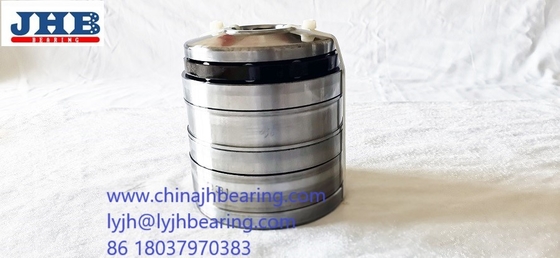

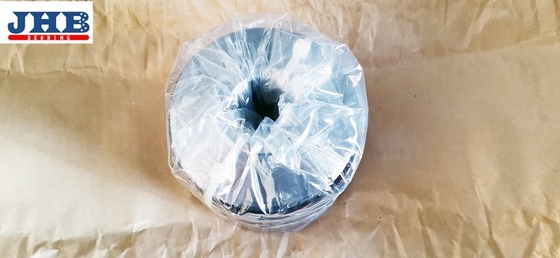

Customized multi-stage tandem thrust bearings T5AR1242 M5CT1242 12x42x104.6mm

Customized multi-stage tandem thrust bearings T5AR1242 M5CT1242 12x42x104.6mm

 Tandem Thrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also these tandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T5AR1242 M5CT1242 with size 12x42x104.6mm , the inner diameter:12 mm, the outer diameter:42mm, the total height:104.6mm

Five row tandem roller bearing catalogue as following:

JinHang Precision bearing offer Tandem thrust cylindrical roller T5AR1242 M5CT1242 12x42x104.6mm bearings have the characteristics of small radial cross-sectional size, compact structure, large axial load capacity, uniform load of each row of rollers, wear resistance, low vibration noise and long life. They are parallel twin screw extruders. Ideal screw spindle bearing.
The tandem bearing including two, three, four, five, six, seven or eight rows of tandem bearings in the company's sample according to the screw center distance, space and load size. The company also accepts tandem bearings of sizes and structures other than the sample.

The tandem bearing T5AR1242 M5CT1242 12x42x104.6mm application as following:
Tandem thrust cylindrical roller bearings have a limited radial cross-section, super axial load capacity, long-term working life and minimum friction loss, so they are obtained in the parallel twin screw extruder gear transmission box in the rubber and plastics industry Very successful application. It will also be popularized and applied in other mechanical equipment.

Tandem Thrust Bearings Type:
1.Multi-stage cylindrical roller thrust bearing (basic type) adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly.The components of this Thrust Bearings are demountable. The user should assemble or Dismount the bearing meticulously according to numeral order we provide.
2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by penetrating an axis through the inner bore of basic type multi-stage cylindrical roller thrust bearing and fastening the bearing to the axis by locking collar.The components of this type of cylindrical roller thrust bearing are inseparable.In 2000, our multi-stage cylindrical roller thrust bearing (shaft type) obtained the national patent and was awarded "high-tech product" by Department of Science and Technology in Jiangsu Province.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing.It is also inseparable,and is assembled and disassembled as a whole.
Tandem Thrust Bearing Application:
Rubber industry parallel twin-screw extruder,Deep drilling oil rig,Pipelay pulling machine,Screw press oil extraction machine

Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.

Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
Quality control:
All the bearing from the forging to assembly process,It will need to inspect step.For the bearing forging we will need to test the size and hardness and surface, for the lathe process and grinding process,first it will need to check by the worker ,and then the professional inspector will checking the size and accurate,The last step the monitor will inspect the size. It can insure zero defect.
Service:
It can calculate the load curve.
Can offer assembly drawing based on the bearing working condition
Can offer pre- sale ,sale and after sale service.
