T3AR2385 Low Price Large Gearbox Tandem Bearing 23X85X97MM In Stock

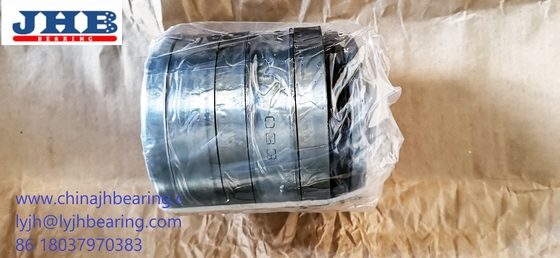

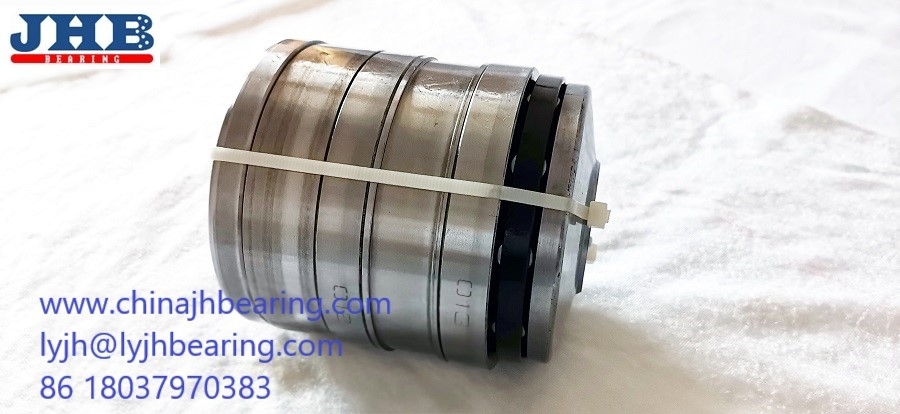

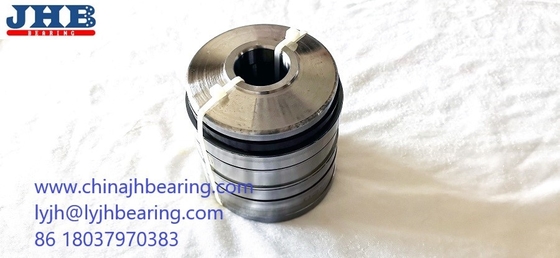

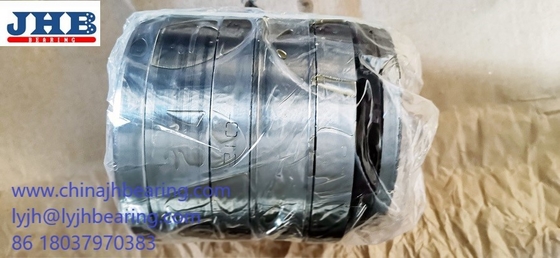

Tandem bearings T3AR2385 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T3AR2385 with size 23X85X97MM, the inner diameter:23 mm, the outer diameter:85mm, the total height:97mm

Tandem Bearings Type

1. Basic Type: The bearing adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly. The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to our guide book.

2. Shaft Type: The bearing is made by penetrating an axis through the inner bore of basic type bearing and fastening the bearing to the axis by locking collar/snap ring. The components of this type bearing are inseparable. Shaft type tandem bearing is variational structure of basic type.

3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable,and is assembled and disassembled as a whole.

Tandem bearings offer an optimum solution wherever the following requirements apply:
■ small radial design envelope
■ high axial forces
■ long operating life
■ low frictional energy.
Tandem bearings have proven effective principally in gearboxes for single and twin screw extruders in the rubber and plastics industry.
Other possible applications include:
■ deep hole drilling equipment
■ friction welding machines.
