T3AR2468 Customized Large Gearbox Tandem Bearing For Extruder Machine 24x68x70mm

T3AR2468 Customized Large Gearbox Tandem Bearing For Extruder Machine 24x68x70mm

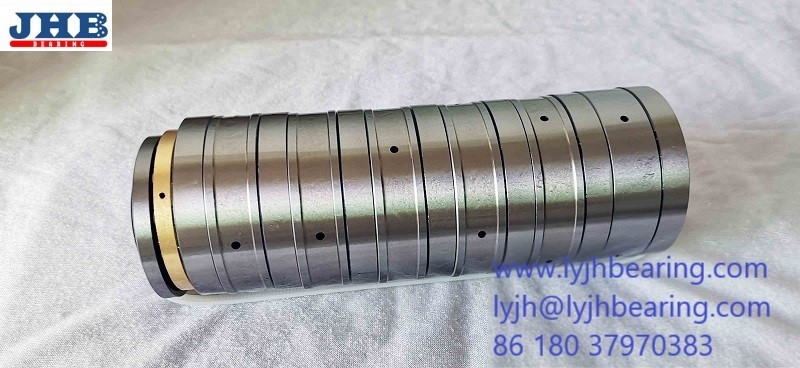

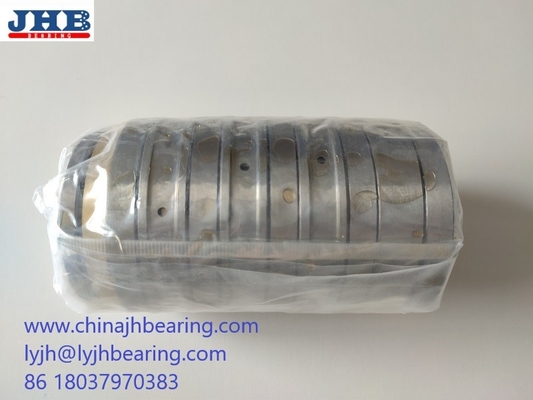

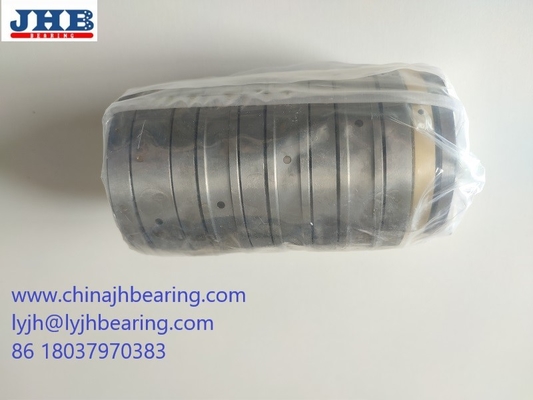

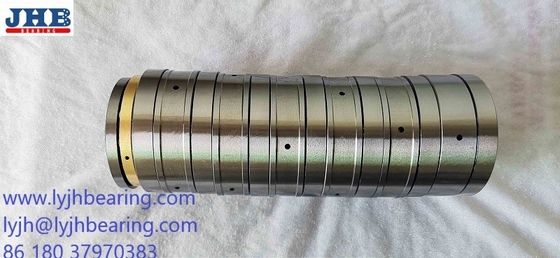

Tandem bearings T3AR2468 consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard axial cylindrical roller and bearing assemblies. The thrust cylindrical roller bearing T3AR2468 with size 24x68x70mm, the inner diameter:24 mm, the outer diameter:68mm, the total height:70mm

Tandem Bearings Type

1. Basic Type: The bearing adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly. The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to our guide book.

2. Shaft Type: The bearing is made by penetrating an axis through the inner bore of basic type bearing and fastening the bearing to the axis by locking collar/snap ring. The components of this type bearing are inseparable. Shaft type tandem bearing is variational structure of basic type.

3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable,and is assembled and disassembled as a whole.

T3AR420
T5AR420
T6AR420
T6AR424
T6AR424X1
T4AR527
T4AR527E
T5AR527
T6AR527
T6AR630
T4AR645E
T4AR1037
T5AR1037E
T4AR1134
T3AR1242E
T4AR1242
T5AR1242E
T5AR1242
T6AR1242E
T4AR1858
T5AR1858X2
T5AR1858
T4AR1860
T6AR1872X2
T6AR1872
T7AR1880
T7AR18100
T8AR18100
T3AR1949E
T4AR1949E
T4AR2047
T5AR2047
T4AR2060
T5AR2262
T6AR2262
T4AR2264
T4AR2264E
T5AR2264
T5AR2264E
T6AR2264E

The tandem bearing T3AR2468 application as following:

Tandem thrust cylindrical roller bearings have a limited radial cross-section, super axial load capacity, long-term working life and minimum friction loss, so they are obtained in the parallel twin screw extruder gear transmission box in the rubber and plastics industry Very successful application. It will also be popularized and applied in other mechanical equipment.

High torque and high speed output rate feature in our range of Twin Screw Extruder Gear Box .

To work under heavy loading force , the high level dissipation and oil lubrication system are provided with. The axial roller type swivel thrust with the thrust bearing coupled in tandem way support the axial thrust.

Features :

High Torque
High outspeed speed rated design
Transmission efficiency and sufficient safety co-efficient
Highest Heat dissipation due to the forced lubrication
Built-in cooling and filter system
Low noise
Minimum rotation vibration
