Product Details:
Payment & Shipping Terms:
|
Material: | GCr15SiMn | Cage: | Brass |
---|---|---|---|
Application: | Extruder Gearbox Shaft | Outer Dia: | 110mm |
Inner Dia: | 40mm | Height: | 164mm |
Twin Screw Plastic Extruder Gearbox Machine Use T4AR40110 40*110*164mm In Stock
The bearing T4AR10110 with four stages thrust cylindrical roller bearing that can bear heavy load and long usage life. It will use for plastic extruder gearbox machine . The thrust cylindrical roller bearing T4AR40110 with size 40*110*164mm, the inner diameter:40 mm, the outer diameter:110mm, the total height:164mm
Tandem bearing code | Basic size unit(mm) |
Basic load rating Unit (KN) |
weight | Delivery time | Package | |||
Inner dia | Outer dia | Height | Cr | Cor | kg | Strong carton | ||
T4AR40110 | 40 | 110 | 164 | 831 | 3634 | 7 | In stock |

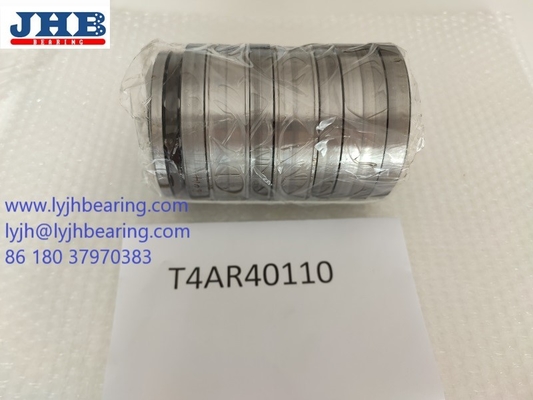

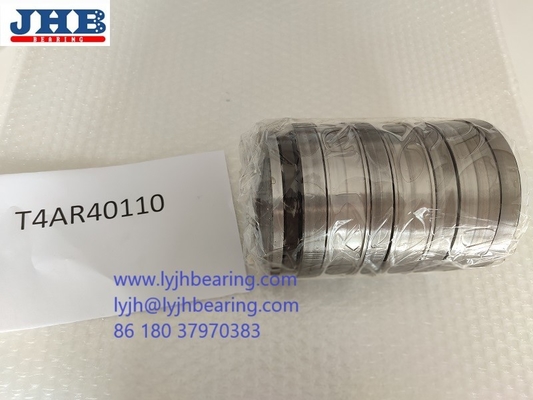

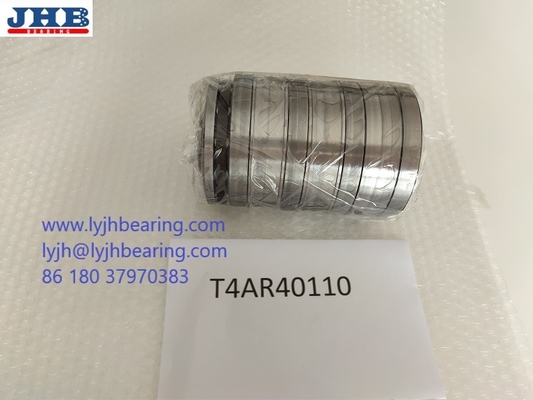

T4AR40110 40*110*164mm extruder gearbox bearing reference picture as following:
Tandem Bearings Type
1. Basic Type: The bearing adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly. The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to our guide book.
2. Shaft Type: The bearing is made by penetrating an axis through the inner bore of basic type bearing and fastening the bearing to the axis by locking collar/snap ring. The components of this type bearing are inseparable. Shaft type tandem bearing is variational structure of basic type.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing. It is also inseparable,and is assembled and disassembled as a whole.
The tandem bearing T4AR40110application as following:
Tandem thrust cylindrical roller bearings have a limited radial cross-section, super axial load capacity, long-term working life and minimum friction loss, so they are obtained in the parallel twin screw extruder gear transmission box in the rubber and plastics industry Very successful application. It will also be popularized and applied in other mechanical equipment.
High torque and high speed output rate feature in our range of Twin Screw Extruder Gear Box .
To work under heavy loading force , the high level dissipation and oil lubrication system are provided with. The axial roller type swivel thrust with the thrust bearing coupled in tandem way support the axial thrust.
Features :
High Torque
High outspeed speed rated design
Transmission efficiency and sufficient safety co-efficient
Highest Heat dissipation due to the forced lubrication
Built-in cooling and filter system
Low noise
Minimum rotation vibration
