Twin Screw Extruder Gearboxes Use F-53579.T6AR Six Rows Roller Bearing

Twin screw extruder gearboxes use F-53579.T6AR six rows roller bearing

F-53579.T6AR f-53579.t6ar bearing specification as following:

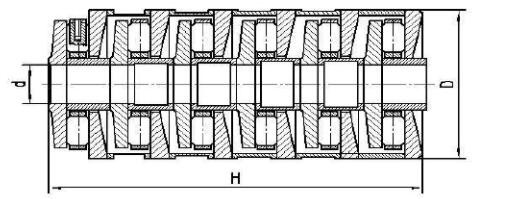

Tandem roller bearing structure :
Tandem 2 rows(T2AR), Tandem 3 rows(T4AR), Tandem 6 rows(T6AR), Tandem 7 rows(T7AR), Tandem 8 rows(T8AR)* Tandem thrust bearings are produced by only through orders

Tandem thrust cylindrical roller Bearings Type
1.Multi-stage cylindrical roller thrust bearing (basic type) adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly.
The components of this Thrust Bearings are demountable. The user should assemble or dismount
the bearing meticulously according to numeral order we provide.
2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by penetrating an axis through the inner bore of basic type multi-stage cylindrical roller thrust bearing and fastening the bearing to the axis by locking collar.
The components of this type of cylindrical roller thrust bearing are inseparable.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing.It is also inseparable,and is assembled and disassembled as a whole.
Multi-Stage cylindrical roller thrust bearings(Tandem bearings) has the characteristics of limited radial space, high axial forces, equal support of all the rows of rollers and long operating life, and is the ideal spindle of parallel screw extruder.

Application of tandem multi-stages roller bearings
When using tandem bearings, the following recommendations should be adhered to:
1. Preload: 1% of the dynamic basic load rating. The dynamic basic load rating of each tandem bearing see Figure 1~3. Figures not listed will be provided by out institute on request.
2. Radial guidance: full complement cylindrical roller bearings or needle roller bearings can be used.

3. Eliminate tilting: the supporting parts must be machined to eliminate any tilting.
4. Mounting tolerances: recommended the following mounting tolerances: shaft f6 and housing bore F7.
5. Lubrication: tandem bearings must always be lubricated by oil circulation

Tandem bearings offer an optimum solution wherever the following requirements apply:
■ small radial design envelope
■ high axial forces
■ long operating life
■ low frictional energy.
Tandem bearings have proven effective principally in gearboxes for single and twin screw extruders in the rubber and plastics industry.
Other possible applications include:
■ deep hole drilling equipment
■ friction welding machines.
