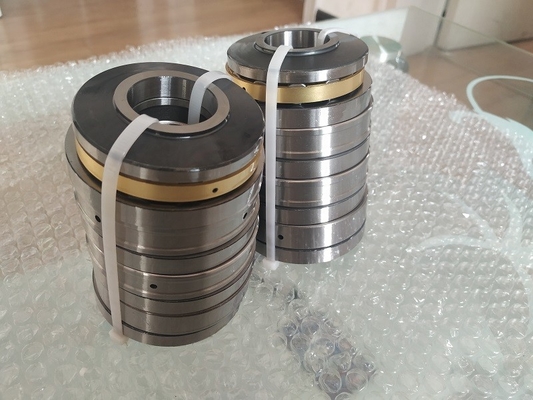

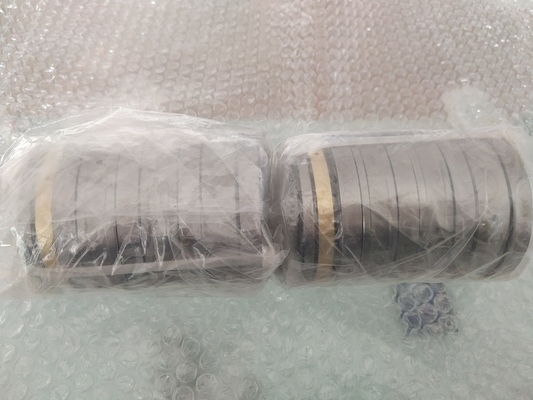

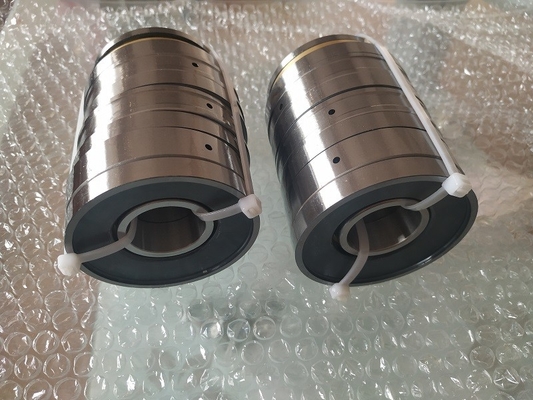

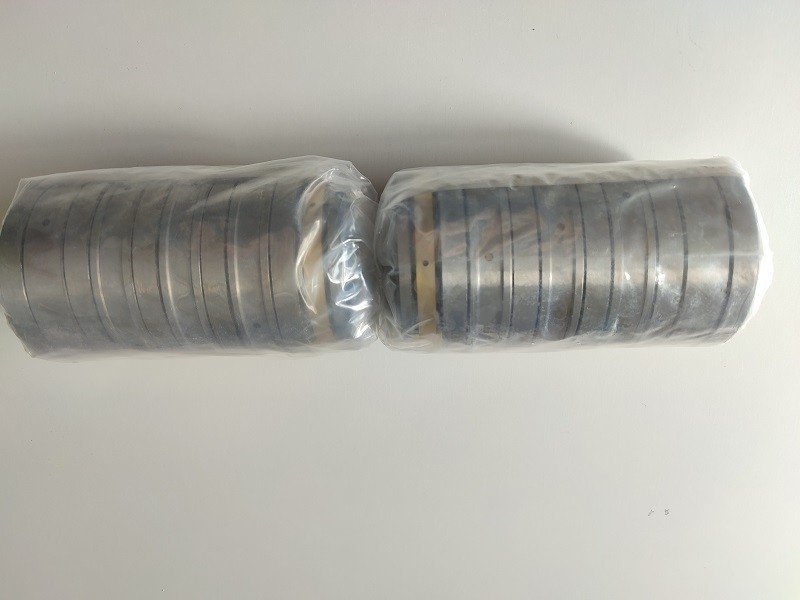

F-53043.T6AR Roller Bearing For Twin Screw Extruder Gearboxes Shaft

F-53043.T6AR roller bearing for twin screw extruder gearboxes shaft

F-53043.T6AR f-53043.t6ar BEARINGS specification as following:

Tandem bearings consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard
axial cylindrical roller and bearing assemblies.

Extruders are used in the processing of plastics in powder or granulate form, mixed with stabilisers, parting agents and any colourings and fillers; they are conveyed, compacted, degassed, homogenised and finally pressed through a die into profiled tooling. In order to apply the necessary forces correctly, very high demands are placed on the extruder gearboxes. Small centre distances, are present in certain extrusion processes. As a result, the gearboxes have high power levels and the screws are subjected to very high axial forces.

Tandem roller bearing structure :

Tandem 2 rows(T2AR),

Tandem 3 rows(T4AR),

Tandem 6 rows(T6AR),

Tandem 7 rows(T7AR), Tandem 8 rows(T8AR)*

Tandem thrust bearings are produced by only through orders

Tandem thrust cylindrical roller Bearings Type

1.Multi-stage cylindrical roller thrust bearing (basic type) adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly.
The components of this Thrust Bearings are demountable. The user should assemble or dismount
the bearing meticulously according to numeral order we provide.
2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by penetrating an axis through the inner bore of basic type multi-stage cylindrical roller thrust bearing and fastening the bearing to the axis by locking collar.
The components of this type of cylindrical roller thrust bearing are inseparable.
3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeve to the external of the basic type multi-stage cylindrical roller thrust bearing.It is also inseparable,and is assembled and disassembled as a whole.
Multi-Stage cylindrical roller thrust bearings(Tandem bearings) has the characteristics of limited radial space, high axial forces, equal support of all the rows of rollers and long operating life, and is the ideal spindle of parallel screw extruder.
