Tubular twister roller bearing Z-546293.ZL 220x350x98mm

Large Image : Tubular twister roller bearing Z-546293.ZL 220x350x98mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or your required
Certification:	Quality certificate
Model Number:	Z-546293.ZL

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	1000-10000USD
Packaging Details:	Carton or standard export wooden case
Delivery Time:	60 days
Payment Terms:	T/T,L/C, Western Union
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Material:	GCr15SiMn	Cage Material:	Brass/steel
Clearance:	C1 C2 C0 C3 C4	Precision Grade:	P5 P6
Application:	Tubular Strander Machine	Feature:	High Rigidity, High Radial Load Carrying Capacity

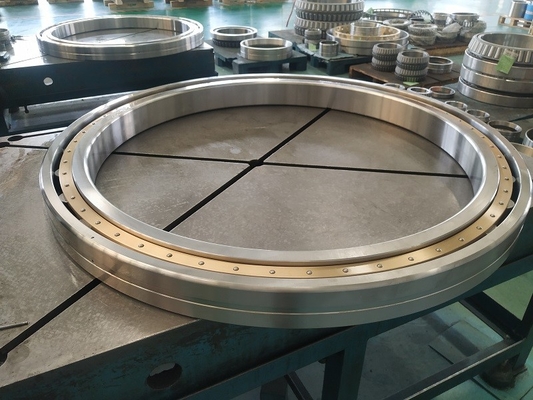

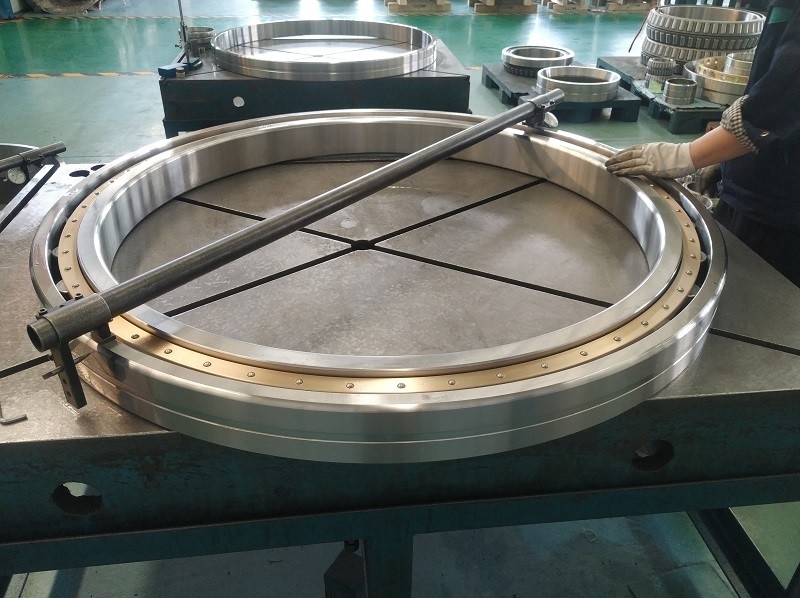

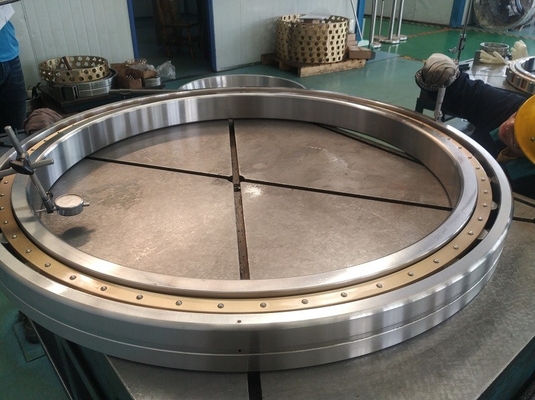

Tubular twister roller bearing Z-546293.ZL 220x350x98mm

Special Cylindrical Roller Bearings Z-546293.ZL have a lubrication groove and three lubrication holes in the outer ring. The robust solid brass cage is guided on the inner ring.The bearings 546293 are separable and are therefore easier to mount and dismount. As a result, both bearing rings can be given a tight fit. Single row cylindrical roller bearings with cage are available as non-locating, semi-locating and locating bearings.

Tubular twister roller bearing Z-546293.ZL 220x350x98mm

Factory Bearing items: Z-546293.ZL

Bearing old type:546293

Bearing boundary size:220x350x98mm

Bearing outer diameter:350MM

Bearing inner diameter:220MM

Bearing height :98mm

Ring material: steel GCr15SiMn

Roller material:steel GCr15

Internal structure: Single row cylindrical roller bearing

Rolling: Roller

Basic dynamic load rating, Radial Cr:1250KN

Basic static load rating, Radial Cor:2080KN

Limited speed:2800RPM

Clearance:C3 C0 normal use

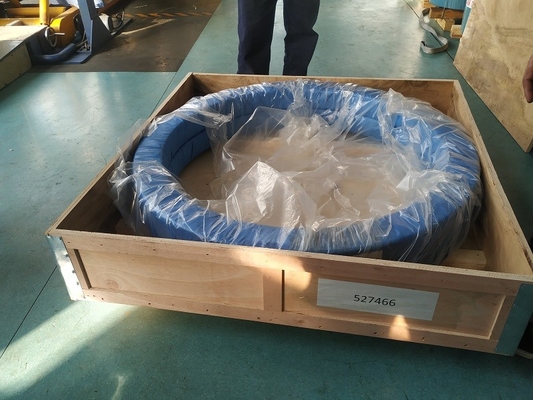

Package:strong wooden case for export

Special bearings 546293 for tubular stranding machines running at high speeds have increased accuracy to tolerance class P6 or P5.we had manufactured the tubular stranding bearing at least 15 years, So if you have any technology issue, Please contact us.
