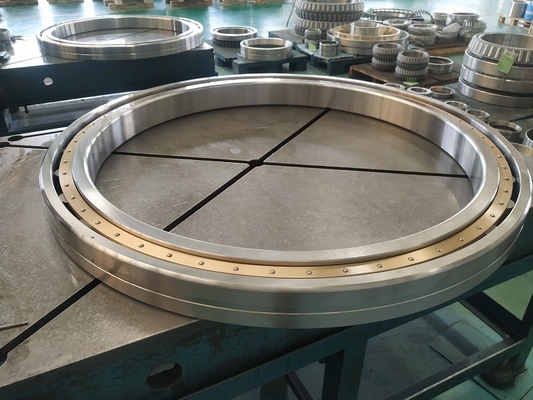

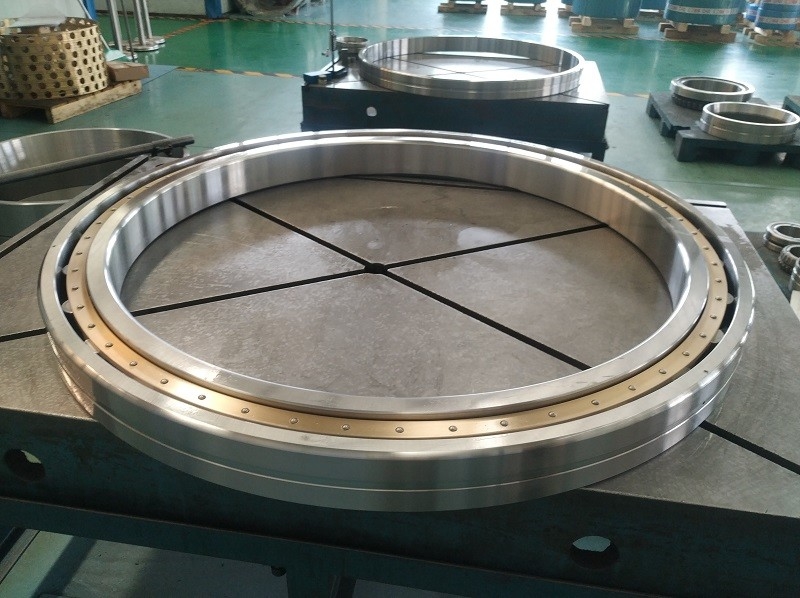

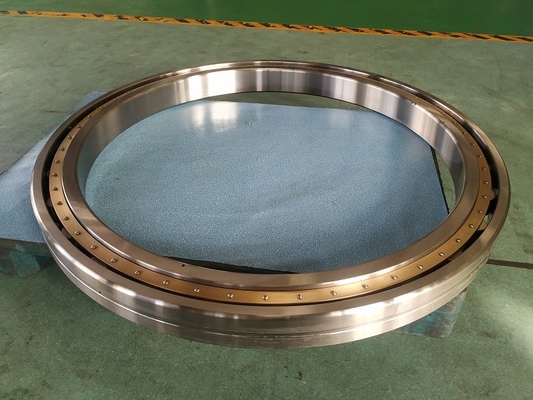

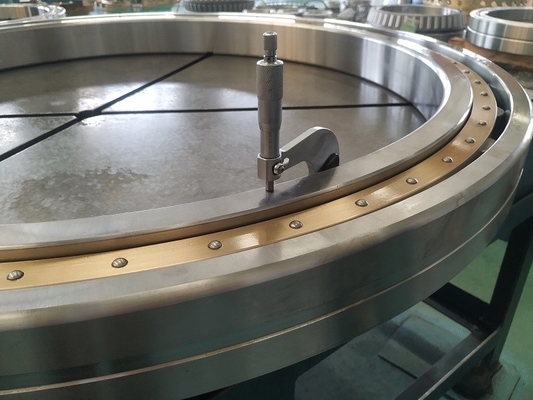

Wire Cable Tubular Strander roller Bearing Z-527461.ZL P5 Grade

Bearing factory items:Z-527461.ZL
Bearing old type: 527461
The bearing z-527461.zl structure:single row cylindrical roller bearing
The bearing 527461 precision grade:P5 P6 Grade
Quality standard:GB307 Rolling bearing technical requirement
Bearing boundary Dimension: standard size
ID(inner diameter)/Bore: standard size
OD(outer diameter):standard size
Width/Height/thickness:standard size
Weight:35KGS
Basic dynamic load rating, Radial Cr:415KN
Basic static load rating, Radial Cor:765KN
Outer Ring material:Steel GCr15SiMn
Cage material:Brass cage
Inner Ring material:Steel GCr15SiMn
Bearing boundary inch size:standard size
Bearing outer diameter inch: standard size
Bearing inner diameter inch size:standard size
Bearing height inch:standard size
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
Clearance:C3 C0 available
The seaport name:Shanghai or Tianjin or qingdao seaport
The delivery time:60 days
HS code:8482500090
Payment term:T/T or L/C at sight
Quality guarantee: one year
Service:offer drawing and technical support



Tubular stranders machine feature:
Quality and experience to obtain unbeatable machines
High capacity machines, fast, reliable and very long-lasting. High quality bearings that allow turning at high turns. Multiple configurations to work with bobbins from Dia. 500 to 900 mm and larger specials according to customer specs for customized solutions.
With automated loading systems, greasing systems inside the tube, binding units for internal layers, back-torsion core mechanisms, etc …
Option to add a larger coil with core element in the head to avoid twisting it (BULL-HEAD)
