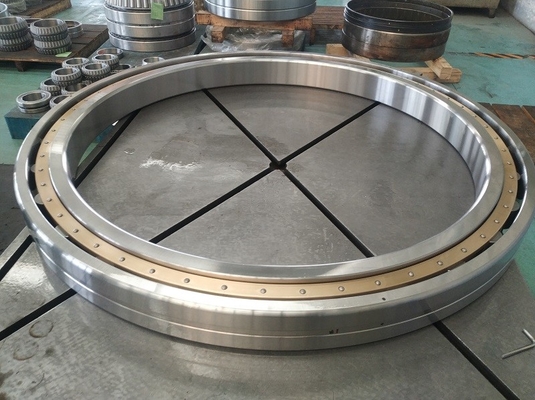

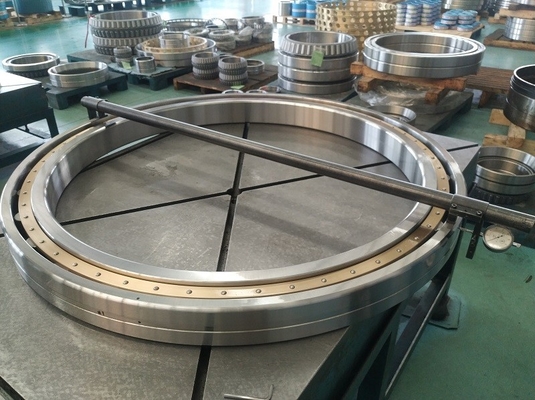

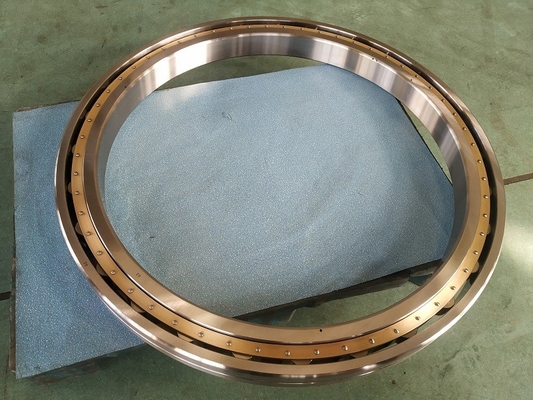

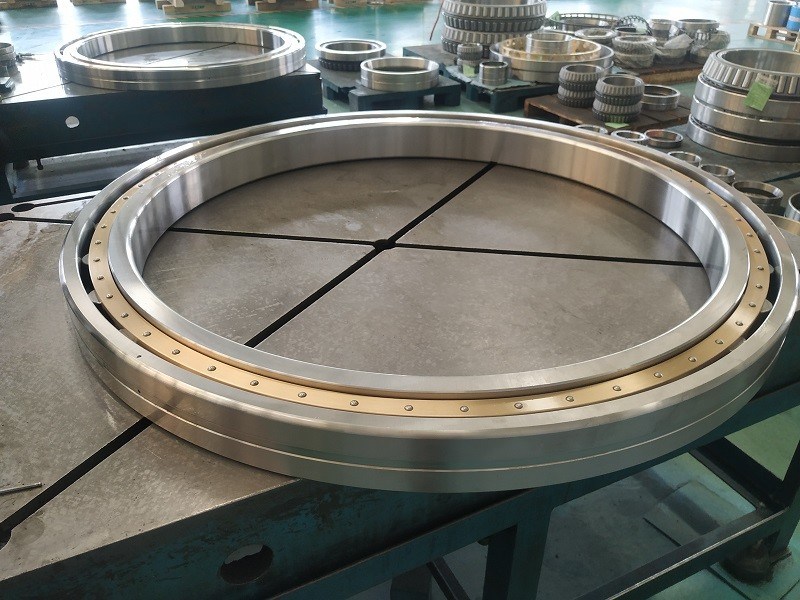

Wire Cable Strander Machine Bearing Z-527247.ZLP5 Grade with brass cage

Bearing description:single row cylindrical roller bearing
Service:offer drawing and technical support
We JHB tubular stranding bearing had offered to Spain,Germany,France,Poland,Brazil ,India and son.
Bearing factory model:Z-527462.ZL
China Bearing old type: 527462
Original:Made in China
Bearing boundary Dimension: standard size
ID(inner diameter)/:standard size
OD(outer diameter):standard size
Width/Height/thickness:standard size
Weight:31KGS
Clearance:C3 C0 available
Quality standard:GB307 Rolling bearing technical requirement
Precision grade:P5 P6 grade
Outer Ring material:Steel GCr15SiMn
Inner Ring material:Steel GCr15SiMn
Cage material:Brass cage
Basic dynamic load rating, Radial Cr:455KN
Basic static load rating, Radial Cor:880KN
The delivery time:60 days
The seaport name:Shanghai or Tianjin or qingdao seaport
Outer Ring and Inner Ring heat treatment:HRC55-62
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
The bearing working speed:1700rpm
Outer Ring and Inner Ring heat treatment:HRC55-62
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
The bearing cage material:Brass cage
HS code:8482500090
Payment term:T/T or L/C at sight
Shipping term:by sea or by air

Tubular stranders machine feature:
Quality and experience to obtain unbeatable machines
High capacity machines, fast, reliable and very long-lasting. High quality bearings that allow turning at high turns. Multiple configurations to work with bobbins from Dia. 500 to 900 mm and larger specials according to customer specs for customized solutions.
With automated loading systems, greasing systems inside the tube, binding units for internal layers, back-torsion core mechanisms, etc …
Option to add a larger coil with core element in the head to avoid twisting it (BULL-HEAD)
