Special High Precision Roller Bearing Z503867ZLP5 grade brass cage

The dynamic roller baring Z-503867.ZLhave higher precision and can be applied in the equipment which runs with high rotational speed. And the bearing normal working at operating temperatures from –30 °C to +150 °C.

Bearing factory model number:Z-503867.ZL
China Bearing old type: 503867 P5
Bearing structure:single row cylindrical roller bearing
Precision grade:P5 P6 grade
Radial clearance:C1 C2 C3 Gruop available
The bearing application: high speed wire cable steel rope tubular stranding machines
Bearing boundary Dimension: Standard size
ID(inner diameter)/: Standard size
OD(outer diameter): Standard size
Width/Height/thickness: Standard size
Quality standard:GB307 Rolling bearing technical requirement
Weight:65KGS
Outer Ring material:Steel GCr15SiMn
Inner Ring material:Steel GCr15SiMn

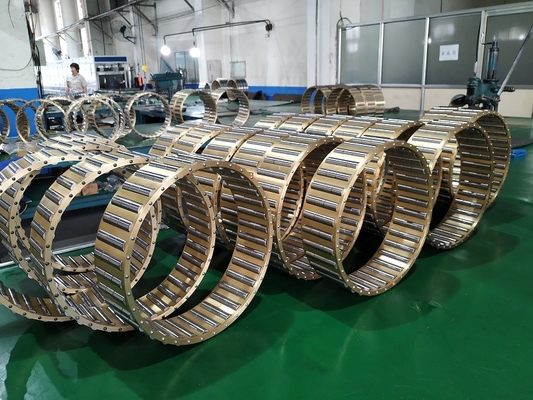

Cage material:Brass cage
The seaport name:Shanghai or Tianjin or qingdao seaport
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
Rolling Body:Roller Bearings
Basic dynamic load rating, Radial Cr:475KN
Basic static load rating, Radial Cor:950KN
Heat Treatment:Bainite heat treatment
Clearance:C3 C0 available
Outer Ring and Inner Ring heat treatment:HRC55-62
Bearing boundary inch size: Standard size
Bearing outer diameter inch: Standard size inch size
Bearing inner diameter inch size: Standard size inch size
Bearing height inch: Standard size inch size
The bearing working speed:1500rpm
HS code:8482500090
Production Capacity:1000 PCS/Year
