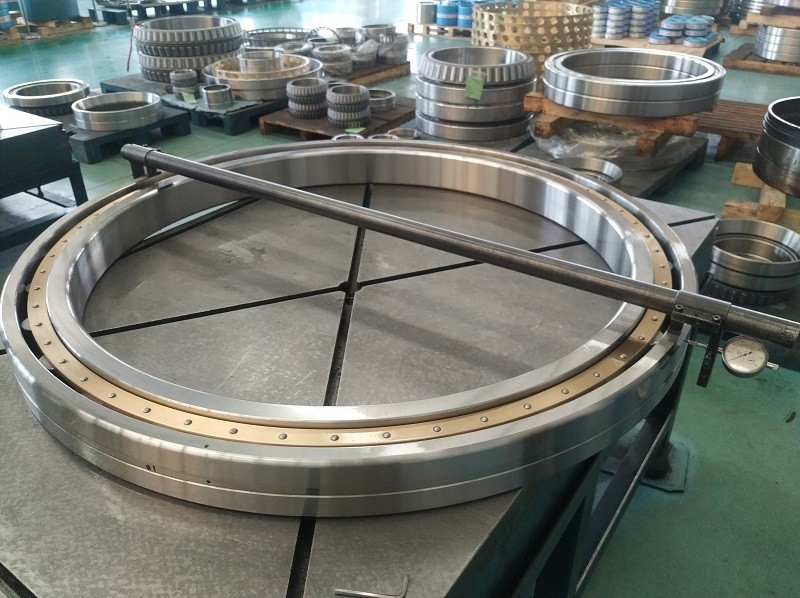

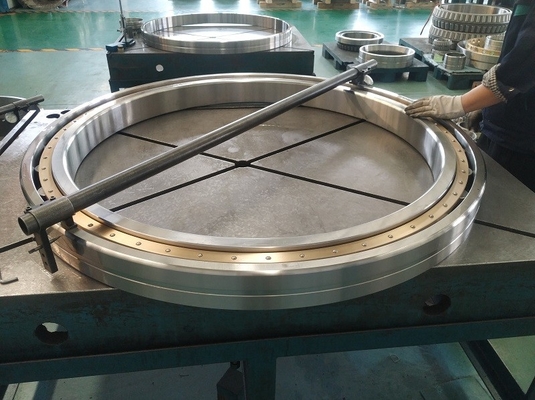

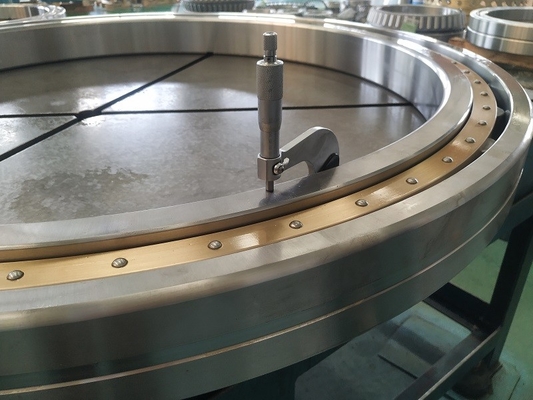

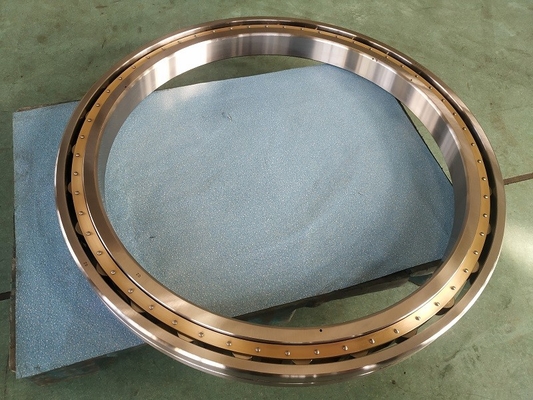

Wire Cable tubular strander high speed bearing Z-527275.ZL with cage

Bearing structure:single row cylindrical roller bearing
Bearing factory model:Z-527275.ZL
China Bearing old type: 527275 P5
The bearings Z527275ZLfor high speed tubular stranding machines/equipment.
Quality standard:GB/T 307 Rolling bearing-measuring and gauging principles and methods
Bearing boundary Dimension: standard size
ID(inner diameter)/:standard size
OD(outer diameter):standard size
Width/Height/thickness:standard size
Outer Ring material:Steel GCr15SiMn
Inner Ring material:Steel GCr15SiMn
Outer Ring and Inner Ring heat treatment:HRC55-62
Heat Treatment:Bainite heat treatment
Single row cylindrical roller bearings, NU seires ,N series ,NJ series and NUP type
Radial clearance:C1 C2 C3 Gruop available.
Basic dynamic load rating, Radial Cr:800KN
Basic static load rating, Radial Cor:1560KN
The seaport name:Shanghai or Tianjin or qingdao seaport
Load Direction:Radial Bearing
Weight:87KGS
The bearing working speed:1400rpm
HS code:8482500090
Cage material:Brass cage
