High Speed Grinding Of Spindles Use Ball Bearing 7060AC 300x460x74mm

High speed grinding of spindles use ball bearing 7060AC 300x460x74mm

The four point contact ball bearing 7060ac belongs to single row ball bearing.The bearing types commonly used in high speed grinding spindle are B70C and B70CA series, and B72C and B72CA series can also be used in heavy load. The cage is made of high strength phenolic clamp tube, and the guide of outer ring edge can make the bearing get good lubrication.

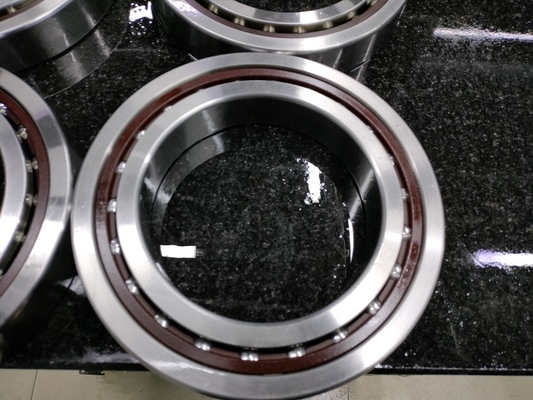

Bearing No. 7060AC P4 Angular contact ball bearing-spindle ball bearing
Technical Data

Inside diameter (mm):320mm
Outside diameter (mm):480mm
Width (mm):74mm
Contact Angle:15°25°40°
Rows Of Balls:single row
The bearing full inch size:11.81x18.11x2.91 inch size
The bearing outer diameter inch size:18.11
The bearing inner diameter inch size:11.81
The bearing height:2.91 inch size
The bearing accuracy grade:P5 P4 P2 grade
The delivery time: in stock, within one day after getting the order.

According to the different working conditions, it can be made up of various formulas to obtain different radial and axial load bearing capacity, and to meet the requirements of high speed, diameter and axial stiffness. Therefore, it is widely used in the spindle of precision machine tools.

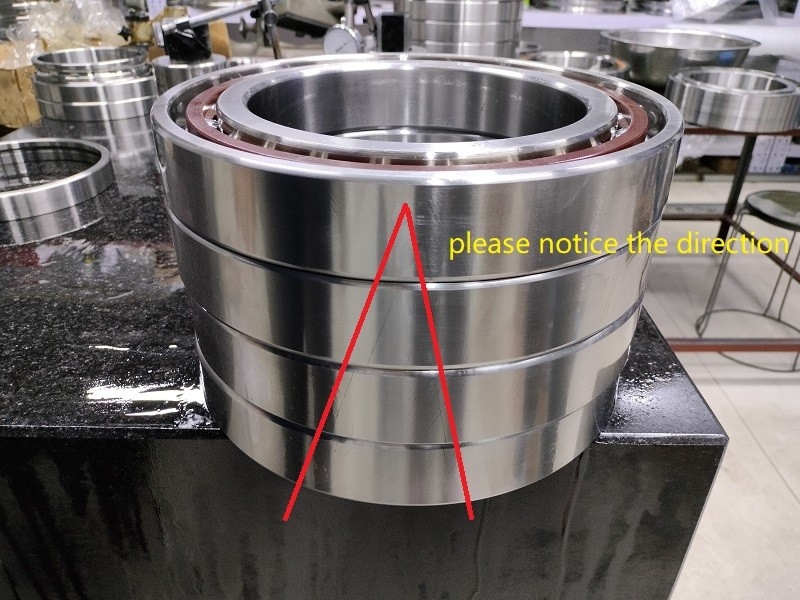

 Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)
