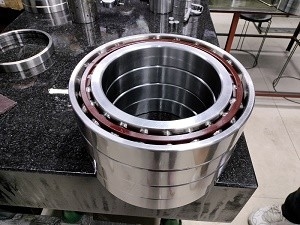

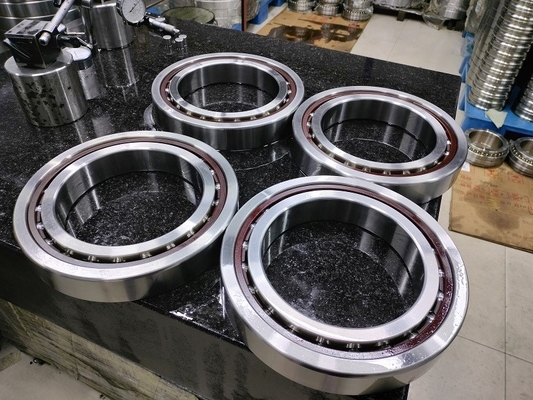

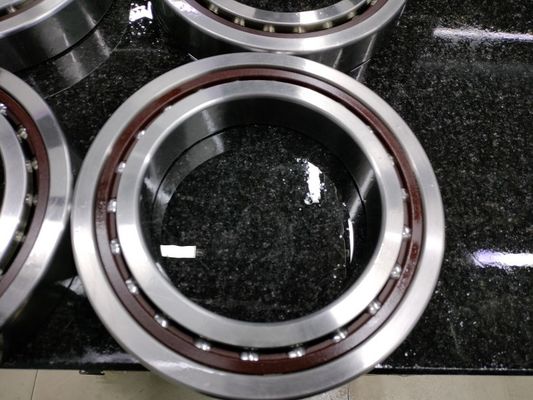

7064c/AC/B High-Speed Angular Contact Ball Bearings 320*480*74mm

7064c/AC/B High-Speed Angular Contact Ball Bearings 320*480*74mm

Angular contact ball bearings 7064C/AC/B are particularly suitable for carrying combined (axial and radial) loads.Their structures and properties vary according to their uses. Angular contact ball bearings for machine tool spindles require high rotation accuracy, sufficient stiffness, load-bearing capacity and small occupancy of space.

Bearing No. 7064AC P4 Angular contact ball bearing-spindle ball bearing
Technical Data as following:
The bearing boundary size:320x480x74mm
The bearing outerside diameter:480mm
The bearing inside diameter:320mm
The bearing width:74mm
Contact Angle:15°25°40°
The bearing grease working speed:900 rpm
The bearing oil working speed:1300rpm
The bearing accuracy grade:P5 P4 P2 grade
Rows Of Balls:single row
The bearing full inch size:12.6x18.9x2.91 inch size
The bearing outer diameter inch size:18.9
The bearing inner diameter inch size:12.6
The bearing height:2.91 inch size

Single row angular contact ball bearings can only bear the axial load in one direction. When bearing the radial load, it will cause additional axial force, and can only limit the axial displacement of the shaft or shell in one direction. The contact angle of angular contact ball bearing is 40 degrees, so it can bear a large axial load. Angular contact ball bearing is a non-separable design, and the shoulders on both sides of the inner and outer rings vary
in height.

 Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)
