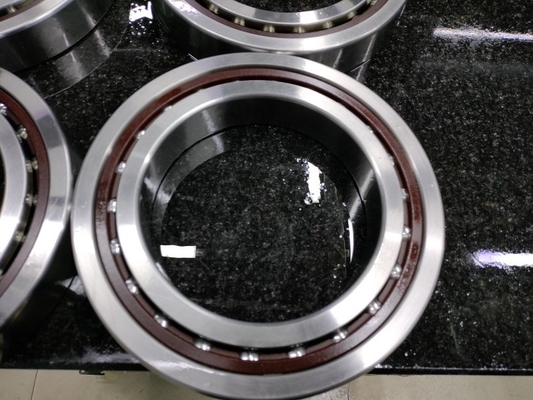

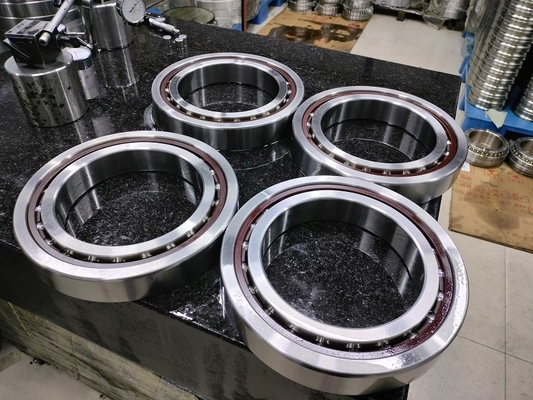

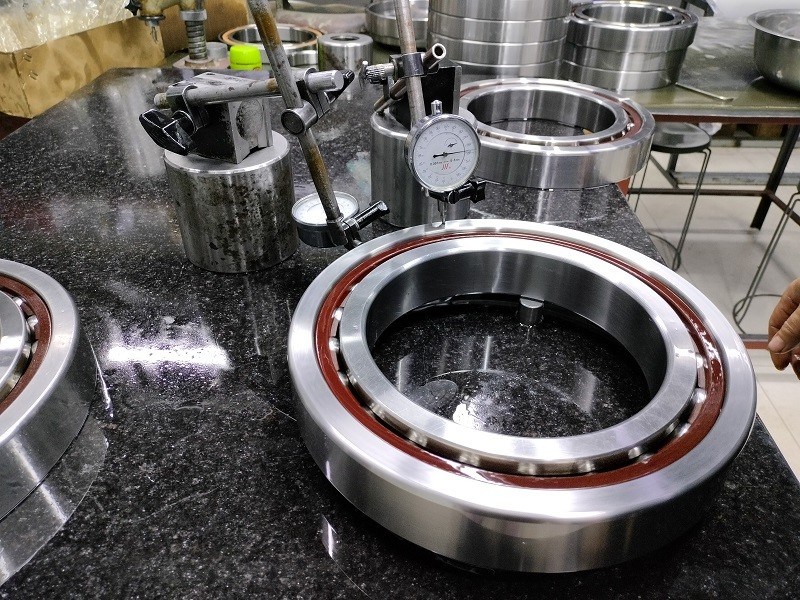

Heavy Load High Speed Main Spindle Ball Bearing 7072ACP4 nylon cage

Heavy load high speed main spindle ball bearing 7072ACP5

The four point contact ball bearing 7072ac/b/c 360X540X82mm belongs to single row ball bearing.The bearing types commonly used in high speed grinding spindle are B70C and B70CA series, and B72C and B72CA series can also be used in heavy load. they can sustain significant axial loads in one direction together with radial loads. Because of their design, when a radial load is applied, an axial force component is produced; therefore, two opposed bearings or a combination of more than two must be used.

Bearing No. 7072AC P4 Angular contact ball bearing-spindle ball bearing
Technical Data as following:
The bearing boundary size:360x540x82mm
The bearing outerside diameter:540mm
The bearing inside diameter:360mm
The bearing width:82mm
Contact Angle:15°25°40°
The bearing grease working speed:850 rpm
The bearing oil working speed:1200rpm
The bearing accuracy grade:P5 P4 P2 grade
Rows Of Balls:single row

7072 High precision ball bearing Application: machine tools, robotics, printing,meansuring systems,racing car wheels
Requirements:high positioning accuracy, reliable positioning repeatability, ow energy consumption, long service life,easy mounting,increased machine uptime, high power density for compact designs.

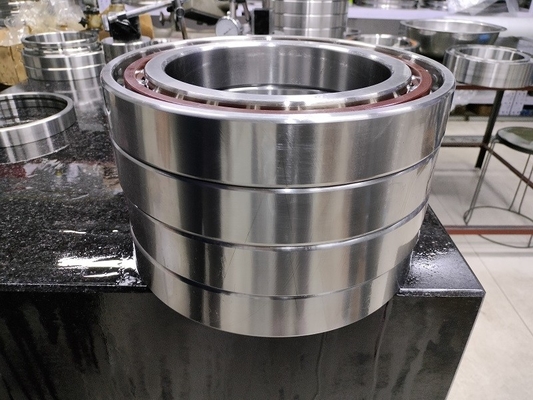

 Back to back bearing arrangement
Face to face bearing arrangement
Tandem bearing arrangement
DB:Back-to-back arrangement Designation suffix DB
DF:Designation suffix DB Designation suffix DF (FF)
DT:Tandem arrangement Designation suffix DT (T)
TBT:Back-to-back and tandem arrangement Designation suffix TBT (TD)
TFT:Face-to-face and tandem arrangement Designation suffix TFT (TF)
TT:Tandem arrangement Designation suffix TT (3T)
QBC:Tandem back-to-back arrangement Designation suffix QBC (TDT)
QFC:Tandem face-to-face arrangement Designation suffix QFC (TFT)
QBT:Back-to-back and tandem arrangement Designation suffix QBT (3TD)
QFT:Face-to-face and tandem arrangement Designation suffix QFT (3TF)
QT:Tandem arrangement Designation suffix QT (4T)
