Slewing bearing 20.0644.200- PNN the dimension 716x572x56mm

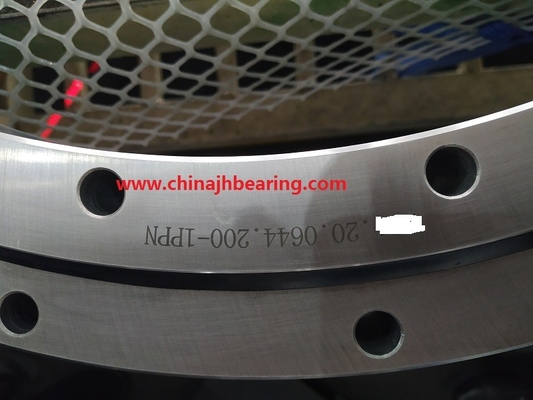

Large Image : Slewing bearing 20.0644.200- PNN the dimension 716x572x56mm

Product Details:

Place of Origin:	China
Brand Name:	JHB
Certification:	Quality certificate
Model Number:	20.0644.200- PNN

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-100USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	40 days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6	Seals Type:	Open
Number Of Row:	Single Row	Rolling:	Ball

Slewing bearing China factory offer 20.0644.200- PNN the size:716x572x56mm

We/JinHang Precision bearing offer Slewing bearing China factory offer 20.0644.200- PNN the size:716x572x56mm Also if you need to choose the right bearing type, We can offer the technology support to help you get the right bearing dimension.

Four point contact ball slewing bearing 20.0644.200- PNN without gear/teeth

Slewing bearing 20.0644.200- PNN the dimension:716x572x56mm

Name	4 point contact ball slewing bearing 20.0644.200- PNN
Boundary dimension	716x572x56mm
Outer dia:	716 mm
Inner dia:	572 mm
Height:	56 mm
Radial clearance	0.05-0.2 mm
Rolling	Ball
Material	50Mn
The delivery time	25 days after getting the order
application	Mining machine equipment
Seals	Double side seals
service	Offer assembly drawing and maintenance
Quality guarantee	10 years

For Slewing bearing 20.0644.200- PNN material: 50Mn is generally used in four point contact ball slewing bearing without gear/teeth,the surface quenching treatment of the raceway.the raceway hardness can reach to HRC55-60. So if you have any question, Please contact us via: lyjh@lyjhbearing.com

Slewing bearing 20.0644.200- PNN the dimension 716x572x56mm

Slewing bearing 20.0644.200- PNN of rolling element:

The material of rolling element :GCr15 or GCr15SiMn from LYC bearing group.

Swing ring 20.0644.200- PNN with double seal material is made of NBR.

Before installing the bearing 20.0644.200- PNN , the bearing surfaces and contact areas should be clearned,remove oil,burrs and strong paints,etc.

The soft zone between the begining and end of the hardened region of the raceway is identified by punched “s” which should be positioned outside the main load carrying areas.

The package :standard wooden case

For the slewing bearing 20.0644.200- PNN How to storage it?

Storage and storage life of slewing rings 20.0644.200- PNN :
Bearings should only be stored lying down, never standing up
The storage life of the bearings is limited by the storage life
of the grease. Experience shows that the greases with a mineral
oil base used can be stored for up to 3 years if the following
preconditions are met:
■ closed storage room
■ dry, clean rooms with temperatures between 0 ºC and +40 ºC
■ relative atmospheric humidity not more than 65%
■ no influence by chemical agents such as vapours, gases, fluids.
After long storage periods, the frictional torque may temporarily be higher than that of freshly greased bearings. The lubricity of the grease may also have deteriorated.
