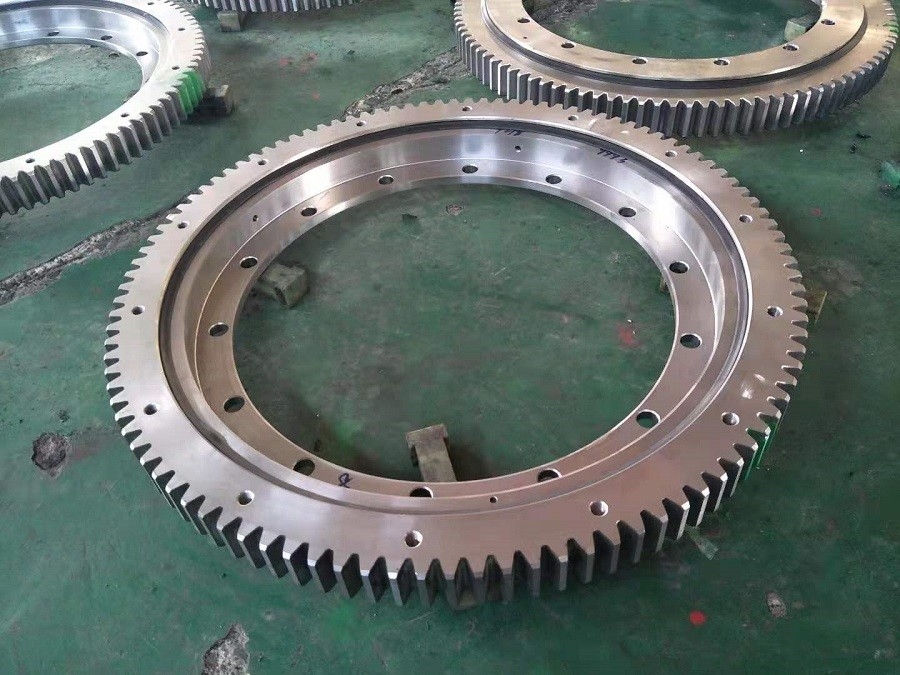

VLA200844N turntable bearing 838.1x634x56mm with external gear and ring with flange
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Ring Material: | 42CrMo 50Mn | Seals Type: | Double Seal |
|---|---|---|---|
| Number Of Row: | Single Row | Teeth: | External Teeth |
| Lubrication: | Grease | Ball Brand: | LYC Brand |
VLA200844N turntable bearing 838.1x634x56mm with external gear and ring with flange
Four point contact bearing VLA200844N, light series, external gear teeth,
selectable internal clearance, sealed, lubrication nipple on circumference of ring without teeth specification as following:
| Name | Four point contact ball slewing bearing |
| Type | VLA200844N |
| Boundary | 838.1x634x56mm |
| Outside dia | 838.1 mm |
| Inner dia | 634 mm |
| height | 56mm |
| gear | With internal gear |
| material | 50Mn |
| Delivery time | 45 days after getting the PO |
| Lubrication | Grease Number 2 |
| Oil hole | available |
| Seal | Double seal |
| Clearance | Axial clearance |
| sample | available |
| Inner ring with flange | yes |
VLA200844N Slewing bearing external teeth parameter as follows:
| No of teeth | Z=117 |
| Press angle | A=20 degree |
| do | 936 |
| m | 8 |
VLA200844N Slewing bearing application:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing table
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
VLA200844N Slewing bearing the package: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case
