FA-00R3 slewing bearing with internal teeth 1166x985.6x54mm Engineering Machine
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 | Seals Type: | Double Seal |
|---|---|---|---|
| Number Of Row: | Single Row | Ring Material: | 42CrMo 50Mn |
| Pulg: | Yes | Lubrication: | Grease |
FA-00R3 slewing bearing with internal teeth 1166x985.6x54mm Engineering Machine
Product description:
FA-00R3 slewing bearing product structure: Four point contact ball slewing bearing
Parts :outer ring, inner ring ,ball , seal
Teeth:internal teeth
Material:50Mn 42CrMo
Cage/retainer: Nylon
Gear type: internal gear slewing bearing
Application: boom crane/offshore crane
FA-00R3 four point contact ball slewing bearing specification as follows:
| Slewing bearing type | FA-00R3 |
| Boundary dimension: | 1166x985.6x54mm |
| Outer dia: | 1166 mm |
| Inner dia: | 985.6 mm |
| Height | 54mm |
| Gear teeth parameter: | |
| Gear teeth | internal gear teeth |
| Press angle | 20 degree |
| m | 8 |
| z | 124 |
| Heat treatment | Forging normalization hardness:HB187-241 |

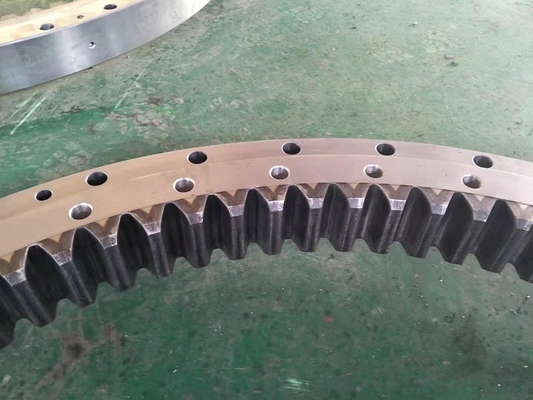

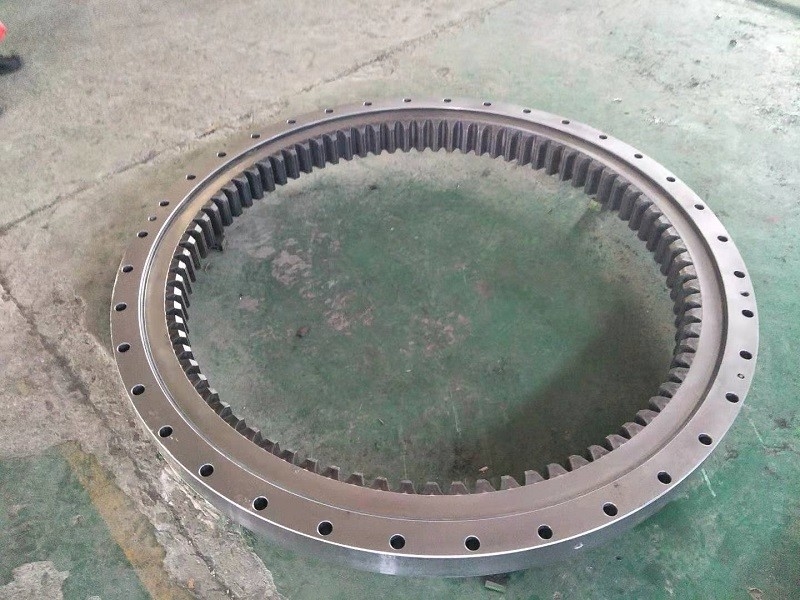

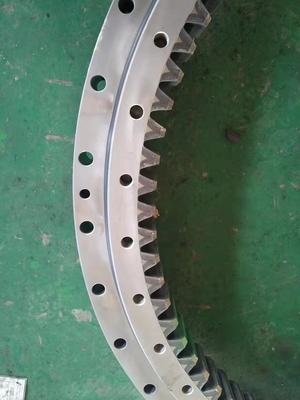

FA-00R3 Slewing bearing structure , Please reference the actual an picture:
Single row four point contact ball slewing bearing feature:
It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.
The slewing bearing application:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines
