Italy customer order Spindle bearings B7216-E-T-P4S dimension 80X140x26mm,in stock

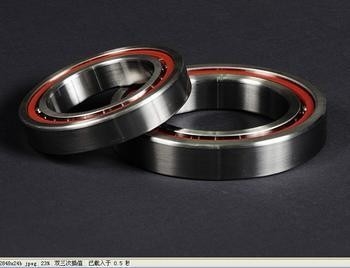

Large Image : Italy customer order Spindle bearings B7216-E-T-P4S dimension 80X140x26mm,in stock

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7216-E-T-P4S

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

Spindle bearingsB7216-E-T-P4S
adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances,in stock, Italy customer order B7216-E-T-P4S ,The qty is 30 pcs

the following are the FAG B7216-E-T-P4S main technology data:

Products name	B7216-E-T-P4S FAG main spindle bearing
Made in	Germany
dimensions	80x140x26mm
Inner diameter	80mm
Outer diameter	140 mm
Height	26mm
Precision Rating	P4
Quality standard	DIN620
basicload rating(KN)	Cr:71KN
basicload rating(KN)	Cor:64 KN
Limiting Speed (r/min)	Grease:9000 r/min
Limiting Speed (r/min)	Oil:15000 r/min
Weight	1.43 kgs
The forging material	Chrome steel
The package	Export Standard carton
The delivery time	In stock

The Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or FAG standard carton boxes.

JinHang Precision Bearing mainly export high quantities FAG B7216-E-T-P4S Bearing and relative products, we have huge stocks for B7216-E-T-P4S bearing and relative items, we supply high quality FAG B7216-E-T-P4S Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in FAG B7216-E-T-P4S Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly.
