B7024-C-T-P4S machine tool spindle bearing:120x180x28 mm,P4 precision grade,fag Original

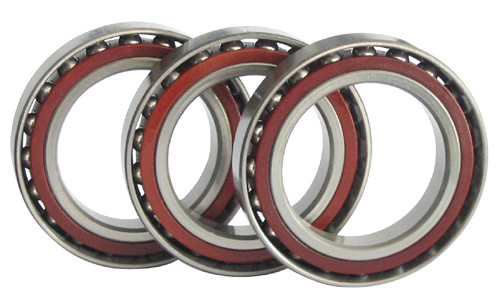

Large Image : B7024-C-T-P4S machine tool spindle bearing:120x180x28 mm,P4 precision grade,fag Original

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7024-C-T-P4S

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

Description: Machine tool main spindle bearing

Type: B7024-C-T-P4S bearing Machine tool main spindle bearing

Dimension: 120x180x28 mm/Metic

ID(inner diameter)/Bore:120mm

OD(outer diameter):180 mm

Width/Height/thickness: 28 mm

Spindle bearings B7024-C-T-P4S

djusted, in pairs or sets, contact angle α = 15°, restricted tolerances

Bearing with steel ball,high speed,P4 Precision grade, in stock, FAG original package

Products name	B7024-C-T-P4S
Current bearing code	B7024-C-T-P4S
Made in	Germany
dimensions	120x180x28mm
Inner diameter	120mm
Outer diameter	180mm
Height	28mm
Precision Rating	P4
Quality standard	DIN620
basicload rating(KN)	Cr:112 KN
basicload rating(KN)	Cor:116 KN
Limiting Speed (r/min)	Grease:6700 r/min
Limiting Speed (r/min)	Oil:10000 r/min
Weight	2.1 kgs
The forging material	Chrome steel
The package	Export Standard carton
The delivery time	Within 3 working days
Stock quantity	58 pcs
E-mail	lyjh@lyjhbearing.com
MSN:	lyjhbearing@hotmail.com
skype	million556

FAG B7024-C-T-P4S bearing is super precision ball bearing for main spindle, it's particularly suitable for supporting high axial forces, offering even more precise machining results and higher cutting performance for the application. If you have just landed here, this product B7024-C-T-P4S bearing, You can call us or send enquiry, we would give you the prices, packing, and more detailed information on the B7024-C-T-P4S bearing .

We cooperate with DHL,TNT,FEDEX,UPS,EMS, and shipping agency etc.They guarantee to meet your needs in terms of time and money, , YES, we ship worldwide. We had a lot of bearing in our warehouse, if we have no stock, the manufacture time:5-10 days.

B7024-C-T-P4S the Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The Inner ring and outer ring hardness: 58-62HRC

The B7024-C-T-P4S manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

The package: standard export wooden case or carton boxes.

FAG B7024-C-T-P4S bearing Machine tool main spindle bearing

B:Standard steel balls.

HCB:Hybrid standard ceramic balls.

XCB:Cronidur standard ceramic balls.

RS:High speed bearing steel balls

HCRS:High speed bearing ceramic balls

HS:Bearing with small balls steel balls

HSS:Bearing with small balls ceramic balls

HC:Bearing with small balls ceramic balls

HCS:Bearing with small balls ceramic balls

XC: Cronidur bearing with small balls ceramic ball
