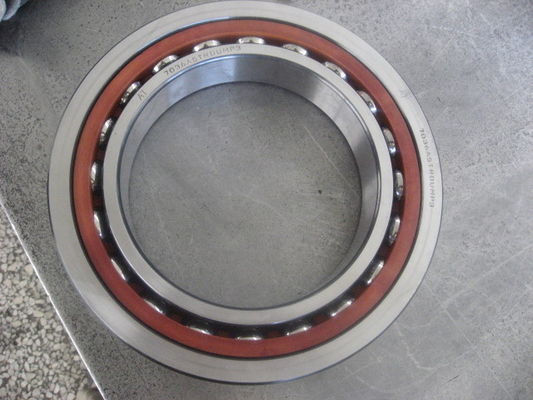

HC7026-E-T-P4S-UL machine tool main spindle bearing:130x200x33 mm,universal pair matched

Large Image : HC7026-E-T-P4S-UL machine tool main spindle bearing:130x200x33 mm,universal pair matched

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	HC7026-E-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

HC7026-E-T-P4S-UL Machine tool main spindle bearing with super precision bearing,HC7026-E-T-P4S-UL Bearing is a popular item that could be used in different application, the dimensions are 130x200x33 mm , HC7026-E-T-P4S-UL spindle Bearing with adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances,ceramic ball bearing and universal pair matched design.

Item: HC7026-E-T-P4S-UL Smachine tool main spindle bearing

Type: ball bearing or angular contact ball bearing

Material:GCr15,GCr15SiMn, Chrome steel

Dimension: 130x200x33 mm,

ID(Inner diameter) bore:130 mm metric size

OD(Outer diameter) bore:200 mm metric size

Width/Height/Thichkness:33 mm metric size

Quantity: one bearing

HC:Bearing with small balls ceramic balls

E:Angular contact :25 degree

T: Laminated fabric guidance on outer ring

P4S:FAG Standard better than P4 to DIN620

Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Limiting Speed

(r/min)

Weight

(KGS)

Cor

Grease

oil

130

200

HC7026-E-T-P4S-UL

42.5

8000

12000

3.5

If you want to know more, please contact us as follows:

JinHang Precision Bearing Co.,Ltd

www.chinajhbearing.com www.lyjhbearing.com

E-mail: lyjh@lyjhbearing.com

MSN: lyjhbearing@hotmail.com

Skype: million556

The following bearings we are stock,If you need following products, Please contact us.

YRT580 580X750X90 MM

YRT650 650X870X122MM

YRT850 850x1095x124mm

YRT950 950x1200x132mm

YRT260 260X385X55 MM

YRT200 200X300X45 MM

YRT180 180x280x43mm

YRT 150 150X240X40 mm

YRT120 120x210x40mm

YRT100 100x185x38mm

YRT80 80x146x35mm

YRT50 50x126x30mm
