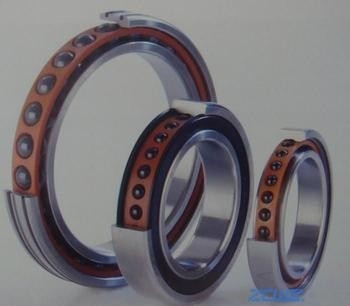

HCB7228-E-T-P4S machine tool main spindle bearing:140x250x42mm,HCB7228-E-T-P4S Bearing
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 P6 P0 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
HCB7228-E-T-P4S Machine tool main spindle bearing with super precision bearing,HCB7228-E-T-P4S Bearing is a popular item that could be used in different application, the dimensions are 140x250x42 mm , HCB7228-E-T-P4S spindle Bearing with adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances,steel ball bearing.
Item: HCB7228-E-T-P4S Smachine tool main spindle bearing
Type: ball bearing or angular contact ball bearing
Material:GCr15,GCr15SiMn, Chrome steel
Dimension: 140x250x42 mm,
ID(Inner diameter) bore:140 mm metric size
OD(Outer diameter) bore:250 mm metric size
Width/Height/Thichkness:42 mm metric size
Quantity: one bearing
HCB:Hybrid standard ceramic balls.
E:Angular contact :25 degree
T: Laminated fabric guidance on outer ring
P4S:FAG Standard better than P4 to DIN620
|
Basic Dimensions(mm) |
Bearing Designations |
Precision Rating |
basic load rating(KN) |
Limiting Speed (r/min) |
Weight (KGS) |
||||
|
d |
D |
B |
Cr |
Cor |
Grease |
oil |
|||
|
140 |
250 |
42 |
HCB7228-E-T-P4S |
P4 |
146 |
156 |
5300 |
8000 |
6.8 |
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
E-mail: lyjh@lyjhbearing.com lyjhbearing@gmail.com
MSN: lyjhbearing@hotmail.com
Skype: million556
