FAG B71848-E-TPA-P4 machine tool spindle bearing 240x300x28 mm,B7244-E-T-P4S bearing price
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

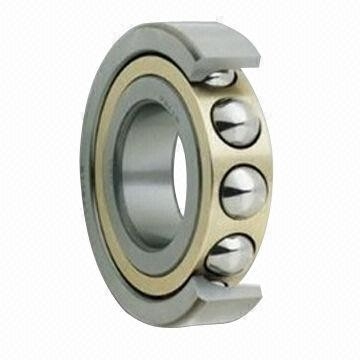

B71848-E-TPA-P4 Machine tool main spindle bearing with super precision bearing, B71848-E-TPA-P4 Bearing is a popular item that could be used in different application, the dimensions are 240x300x28 mm , B71848-E-TPA-P4 spindle Bearing with adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances.
Item: B71848-E-TPA-P4 machine tool main spindle bearing
Type: ball bearing or angular contact ball bearing
Material:GCr15,GCr15SiMn, Chrome steel
Dimension: 240x300x28 mm,
ID(Inner diameter) bore:240 mm metric size
OD(Outer diameter) bore:300 mm metric size
Width/Height/Thichkness:28 mm metric size
Quantity: one bearing
• Dynamic load rating Cr: 98,000 N
• Static load rating Cor: 140,000 N
• Limiting Speed:
o Grease Lubrication: 3000 RPM
Oil Lubrication: 4500 RPM
B:Standard steel balls.
E:Angular contact :25 degree
T: Laminated fabric guidance on outer ring
P4S:FAG Standard better than P4 to DIN620
|
Basic Dimensions(mm) |
Bearing Designations |
Precision Rating |
basic load rating(KN) |
Limiting Speed (r/min) |
Weight(KGS) |
||||
|
d |
D |
B |
Cr |
Cor |
Grease |
oil |
|||
|
240 |
300 |
28 |
B71848-E-TPA-P4 |
P4 |
98 |
140 |
3000 |
4500 |
3.9 |
If you want to know more, please contact us as follows:
JinHang Precision Bearing Co.,Ltd
E-mail: lyjh@lyjhbearing.com
MSN: lyjhbearing@hotmail.com
Skype: million556
The following bearings we are stock,If you need following products, Please contact us.
YRT580 580X750X90 MM
YRT650 650X870X122MM
YRT850 850x1095x124mm
YRT950 950x1200x132mm
YRT1030 1030x1300x145mm
YRT460 460x600x70 mm
YRT395 395x525x65 mm
YRT325 325x450x60mm
YRT260 260X385X55 MM
YRT200 200X300X45 MM
YRT180 180x280x43mm
YRT 150 150X240X40 mm
YRT120 120x210x40mm
YRT100 100x185x38mm
YRT80 80x146x35mm
YRT50 50x126x30mm
XR897051 1549.4X1828.8X101.6 mm
XR889058 1028.7X1327.15X114.3 mm
XR882055 901.7X1117.6X82.55mm
XR855053 685.8X914.4X79.375 mm
XR820060 580X760X80 mm
XR766051 457.2X609.6X63.5mm
JXR699050 370X495X50 mm
XR678052 330.2x457.2x63.5 mm
JXR652050 310x425x45mm
JXR637050 300x400x37 mm
XR496051 203.2 x279.4 x31.75 mm
B71821-C-TPA-P4-UL 105x130x13mm
B71821-E-TPA-P4-UL 105x130x13mm
HCB71821-C-TPA-P4-UL 105x130x13mm
HCB71821-E-TPA-P4-UL 105x130x13mm
B71921-E-T-P4S-UL 105x145x20mm
B71921-C-T-P4S-UL 105x145x20mm
HCB71921-C-T-P4S-UL 105x145x20mm
HCB71921-E-T-P4S-UL 105x145x20mm
XCB71921-E-T-P4S-UL 105x145x20mm
XCB71921-C-T-P4S-UL 105x145x20mm
HS71921-C-T-P4S-UL 105x145x20mm
HS71921-E-T-P4S-UL 105x145x20 mm
HC71921-C-T-P4S-UL 105x145x20mm
HC71921-E-T-P4S-UL 105x145x20mm
XC71921-C-T-P4S-UL 105X145X20mm
XC71921-E-T-P4S-UL 105X145X20mm
B7021-C-T-P4S-UL 105X160X26mm
B7021-C-2RSD-T-P4S-UL 105X160X26mm
B7021-E-T-P4S-UL 105X160X26mm
HCB7021-C-T-P4S –UL 105x160x26mm
HCB7021-E-T-P4S-UL 105x160x26mm
HCB7021-C-TX-P4S-UL 105x160x26mm
HCB7021-EDLR-T-P4S-UL 105x160x26mm
XCB7021-C-T-P4S-UL 105x160x26mm
XCB7021-E-T-P4S-UL 105x160x26 mm
XCB7021-E-2RSD-T-P4S-UL 105x160x26 mm
HS7021-C-T-P4S-UL 105x160x26 mm
HS7021-E-T-P4S-UL 105x160x26 mm
HSS7021-E-T-P4S-UL 105x160x26 mm
