B71956-C-T-P4S machine tool spindle bearing 280x380x46 mm,B71956-C-T-P4S bearing supplier

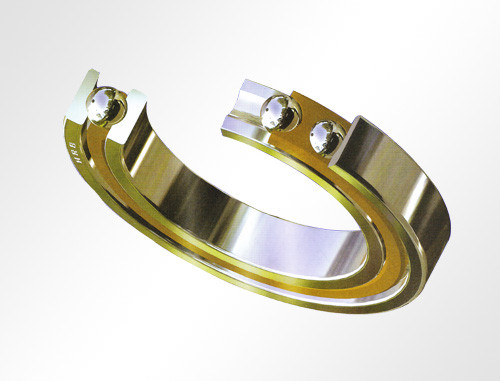

Large Image : B71956-C-T-P4S machine tool spindle bearing 280x380x46 mm,B71956-C-T-P4S bearing supplier

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B71956-C-T-P4S

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

B71956-C-T-P4S Machine tool main spindle bearing with super precision bearing, B71956-C-T-P4S Bearing is a popular item that could be used in different application, the dimensions are 280x380x46 mm , B71956-C-T-P4S spindle Bearing with adjusted, in pairs or sets, contact angle α = 15°, restricted tolerances.

Item: B71956-C-T-P4S machine tool main spindle bearing

Type: ball bearing or angular contact ball bearing

Material:GCr15,GCr15SiMn, Chrome steel

Dimension: 280x380x46 mm,

ID(Inner diameter) bore:280 mm metric size

OD(Outer diameter) bore:380 mm metric size

Width/Height/Thichkness:46 mm metric size

Quantity: one bearing

• Dynamic load rating Cr: 300,000 N

• Static load rating Cor: 450,000 N

• Limiting Speed:

o Grease Lubrication: 3000 RPM

Oil Lubrication: 4500 RPM

B:Standard steel balls.

C:Angular contact :15 degree

T: Laminated fabric guidance on outer ring

P4S:FAG Standard better than P4 to DIN620

Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating(KN)

Limiting Speed

(r/min)

Weight(KGS)

Cor

Grease

oil

280

380

B71956-C-T-P4S

300

450

2600

4000
