B7022-E-T-P4S-UL main spindle bearing 110x170x28mm,P4 Grade,25 degrees Contact Angle

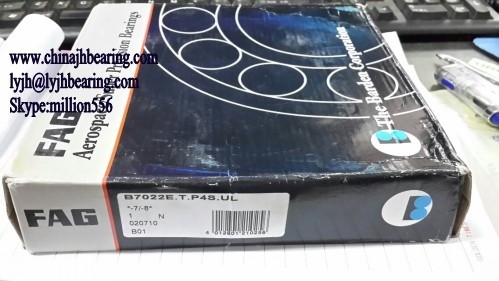

Large Image : B7022-E-T-P4S-UL main spindle bearing 110x170x28mm,P4 Grade,25 degrees Contact Angle

Product Details:

Place of Origin:	Germany
Brand Name:	FAG or OEM
Certification:	Quality certificate
Model Number:	B7022-E-T-P4S-UL

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 8 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5	Seals Type:	No Seal
Number Of Row:	Single Row

FAG bearings B7022-E-T-P4S-UL adjusted, in pairs or sets, contact angle α = 25°, restricted tolerances
d: 110mm D: 170mm B: 28mm
Type:	B	Standard Steel balls
Dimension series:	70	Medium series
Dimension(dxDxh)		110x170x28mm
Contact angle:	C	C =15° E = 25°
Cages:	T	Plastic fiber cage, outer ring guided
Precision:	P4S	P4S FAG standard, reference to DIN620, higher than P4
Bearing arrangement:	U	single bearing, universal assemble
Preload:	L	light preload

B7022.E.T.P4S.UL High Precision Ball Bearing,Machine tool main spindle bearing
B7022.E.T.P4S.UL FAG High Speed Angular contact Ball Bearing
25 degrees Contact Angle
P4 Grade
110mm x 170mm x 28mm
Made in Germany

B7022.E.T.P4S.UL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phenolic cage, bearing is P4 quality and made in Germany

Item: B7022.E.T.P4S.UL FAG Ball Bearing,FAG machine tool main spindle bearing

Type: FAG Angular Spindle Ball Bearing

ball: steel

Quality: P4 Grade

Dimensions: 110mm x 170mm x 28mm /Metric

ID (inner diameter)/Bore: 110mm

OD (outer diameter): 170mm

Width/Height/thickness: 28mm

Size:110 x 170 x 28 mm

Quantity: One Bearing

Dynamic load rating Cr: 106000 N

Static load rating Cor: 73000 N
