B71940-E-T-P4S-UL main spindle bearing 200x280x38mm,P4 Grade,in pairs or sets, steel ball
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 | Seals Type: | No Seal |
|---|---|---|---|
| Number Of Row: | Single Row |
B71940-E-T-P4S-UL High Precision Ball Bearing B71940-E-T-P4S-UL Machine tool main spindle bearing
B71940E.T.P4S.UL FAG High Speed Angular contact Bearing, Ball Bearing is Super precision Angular with 25 degrees contact angle and Phonetic cage, bearing is P4 quality and made in Germany
Item: B71940ETP4SUL FAG Ball Bearing,FAG machine tool main spindle bearing
Type: FAG Angular contact Ball Bearing
ball: steel
Quality: P4 Grade
Dimensions: 200mm x280mm x 38mm /Metric
ID (inner diameter)/Bore: 200mm
OD (outer diameter): 280mm
Width/Height/thickness: 38mm
Size:200 x 280 x 38 mm
Quantity: One Bearing
Dynamic load rating Cr: 193000 N
Static load rating Cor: 24000 N
Limiting Speed:
Grease Lubrication: 5300 RPM
Oil Lubrication: 3600 RPM
The delivery time: in stock, within one day after getting the order
Package:standard carton or standard wooden case
Shipping term:TNT,FEDEX,DHL UPS Express or your required.

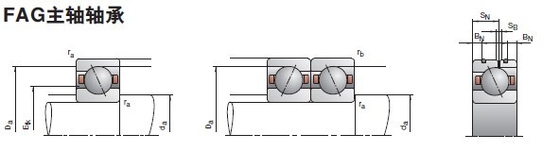

The bearing B71940-E-T-P4S-UL Reference pictures as following:
Price: if you want to know the price B71940-E-T-P4S-UL bearing ,Please send us:
