Crossed tapered roller bearing XR889058 1028.7x1327.15x114.3mm for Vertical and horizontal boring mills
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Precision Rating: | P4 P5 | Seals Type: | Open |
|---|---|---|---|
| Number Of Row: | Single Row | Product Structure: | Crossed Tapered Roller |
Crossed tapered roller bearing XR889058 1028.7x1327.15x114.3mm for Vertical and horizontal boring mills
Description:XR AND JXR Crossed roller thrust bearing 1028.7x1327.15x114.3mm
Type:XR889058Crossed roller tapered /thrust bearing
The XR889058 Crossed roller tapered Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel
The XR889058 Crossed roller tapered roller material : GCr15SiMn ,GCr15, Chrome steel
The XR889058 Crossed roller tapered Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The delivery time:20-30 days
The package: standard export wooden case or carton boxes.
XR889058 Crossed roller thrust bearing has two kinds of XR and JXR. They can withstand high overturning moments.
Applications include machine tool table bearing for vertical boring and grinding machines. Other applications include various pivot and pedestal applications.
TXRDO Bearing has a double outer race and two inner races with rollers spaced by separators.
|

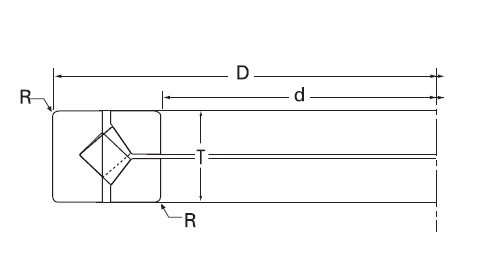

Items |
Data |
Unit |
|
Description |
XR889058 bearing |
|
|
ID(inner diameter)/Bore |
1028.7 |
mm |
|
OD(outer diameter) |
1327.15 |
mm |
|
H:Width/Height/thickness |
114.3 |
mm |
|
Two-Row radial load rating |
405 |
KN |
|
Thrust Load rating |
534 |
KN |
|
Weight |
400 |
KGS |
The application as follows:
- Precision rotary and indexing tables for machine tools
- Vertical and horizontal boring mills
- Vertical grinding machines
- Rotary surface grinding machines
- Large gear hobbing machines
- Gun and radar turrets
- Large radio and optical telescopes
- Swiveling cameras
- Steering pivots and casters
- Pivots where height is restricted
- Microscope tables
- Cane center pivots
- Swiveling bogies
- Welding manipulators
- Large tanker mooring buoys
- Rotary assembly jigs
- Industrial robots

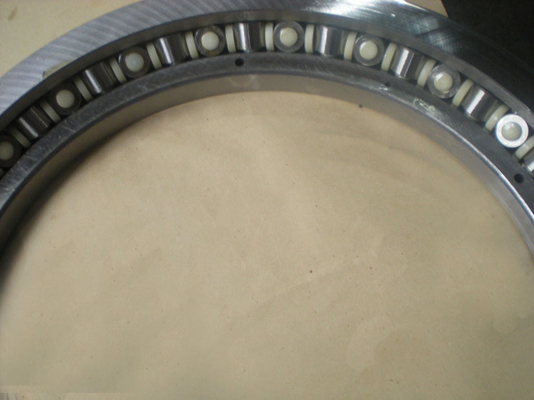

XR889058Crossed roller tapered /thrust bearing actual bearing pictures as follows:
We JINHANG Precision bearing are a professional
Precision bearing manufacturer in the world, established in 2005, specializing in slewing bearings, slewing drives,rotary table bearing,crossed roller bearing,cylindrical roller bearing,tapered roller bearing,spherical roller bearing,thrust roller bearing thrust ball bearing,tandem bearing,pinion and other special machine parts, with design, production, sales, marketing and service all over the world. For the high precision bearing,our precision grade can reach to P5 P4 P2 class.
Our team advantage:
We have 70 employees, with 10 experienced engineers and professional technicists. The most of Engineer from LYC and ZWZ brand factory, they had owned produce and design and after sales experienced to design the bearing.We can also design the drawing according to the bearing work condition to meet the customer requirement.
Manufacturing ability:
Equipped with advanced manufacturing CNC Machine and test instruments to insure the accurate tolerance , all bearings are of uniform marking and packing with superior quality, reasonable prices and perfect services. Meanwhile we can make the module to test the mounting hole.
