INA/FAG SL181892-E bearing parameter,dimension, hardness, load rating and application

Large Image : INA/FAG SL181892-E bearing parameter,dimension, hardness, load rating and application

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or quality certificate
Model Number:	SL181892-E

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	100-1000USD
Packaging Details:	Standard export wooden case
Delivery Time:	in stock or ex-stock
Payment Terms:	T/T L/C
Supply Ability:	1000PCS/month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	Opened
Number Of Row:	Single Row

Cylindrical roller bearings SL181892-E semi-locating bearing, full complement cylindrical roller set,

the dimension: 460x580x56 mm

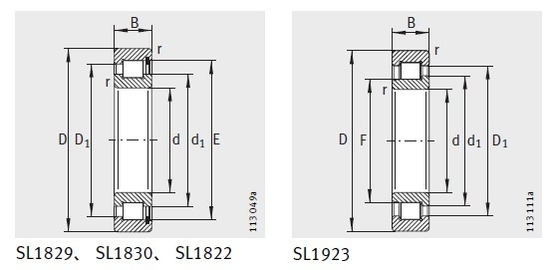

SL181892-E bearing dimension details and rough drawing:

INA/FAG SL181892-E bearing parameter,dimension, hardness, load rating and application

description	Full complete single row cylindrical roller bearing
Bearing type	INA/FAG Code SL181892-E

Basic dimension(mm)	d	460 mm
	D	580mm
	B	56 mm
	r min	4 mm
	rl	—
	s	3 mm
	E	554 mm
	F	---
	D1	541 mm
	d1	501.5 mm
	B1	---
	B2	—
	B3	—
Basic load rating	Cr(KN)	940 KN
Basic load rating	Cor(KN)	1890 KN
Limiting speed	nG(rpm)	580 1/min
	nB(rpm)	385 1/min
Weight		33.21 kgs

INA/FAG SL181892-E bearing parameter,dimension, hardness, load rating and application

The bearing SL181892-E outer and inner ring material and hardness:

The Bearing inner ring and outer ring forging material:GCr15SiMn ,GCr15, Chrome steel

The Inner ring and outer ring hardness: 58-62HRC

The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.

SL181892-E full complete cylindrical roller bearing application:
crane sheaves,Gear box producers,Transmission motor producers, Steel industry, Producers for construction equipment

Forest technology, Synthetic material industry, Machine tool producers, Producers of measuring devices and dividing units

Rotary table manufactures, Maritime industry, Metal forming technology, Crane sheave on the sea, Deck crane

Transmission, Planetary speed reducer, and so on.

If you want to know bearing SL181892-E more, Please send us by e-mail or call us, We will send the more details. Thanks.
