NCF1840V Timken code cylindrical roller bearing,size:200x250x24mm,ISO246 Quality standard

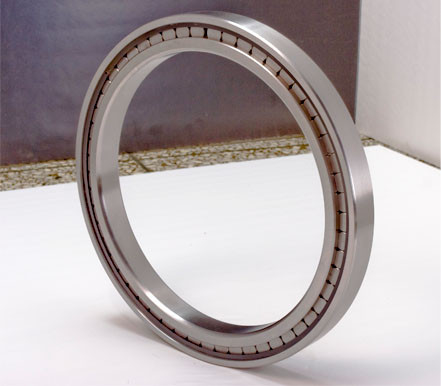

Large Image : NCF1840V Timken code cylindrical roller bearing,size:200x250x24mm,ISO246 Quality standard

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	Quality certificate
Model Number:	NCF1840V

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	1-10000USD/negotiation
Packaging Details:	Carton or standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 5- 10 days
Payment Terms:	T/T,L/C
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Precision Rating:	P4 P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

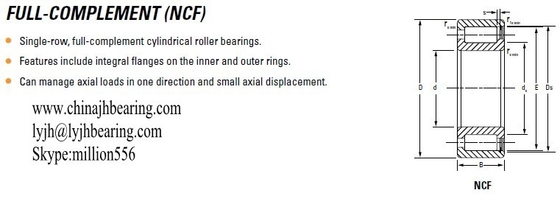

The NCF1840V full-complement (NCF) single-row bearings include integral flanges on the inner and outer rings. These bearings also can manage axial loads in one direction and permit small axial displacements.

The NCF1840V cylindrical roller bearing description as follows:

Name		Full complement single row cylindrical roller bearing NCF1840V
Bearing type		NCF1840V
Dimension		200x250x24 mm
ID(inner diameter)/Bore		200 mm
OD(outer diameter)		250 mm
Width/Height/thickness		24 mm
Load Rating	Static	337 KN
	Dynamic	188 KN
Speed Ratings	Oil	740 RPM
	Grease	610 RPM
Weight		6.5 KGS
Delivery time		In stock, If ex-stock, the manufacture time about 15-20 days
package		standard export wooden case
Quality standard		I S O 2 4 6/ GB/T 283
Material		GCr15 GCr15SiMn chorme steel
HS Code		8482500090

JinHang Precision Bearing mainly export precision cylindrical roller bearing Timken NCF1840V Bearing and relative products, we have huge stocks for NCF1840V bearing and relative items, Also if ex-stock, the best deliver time about 15-20 days. we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NCF1840V Bearing, please email us :lyjh@lyjhbearing.com so we will contact you directly. Thanks for your trust!
