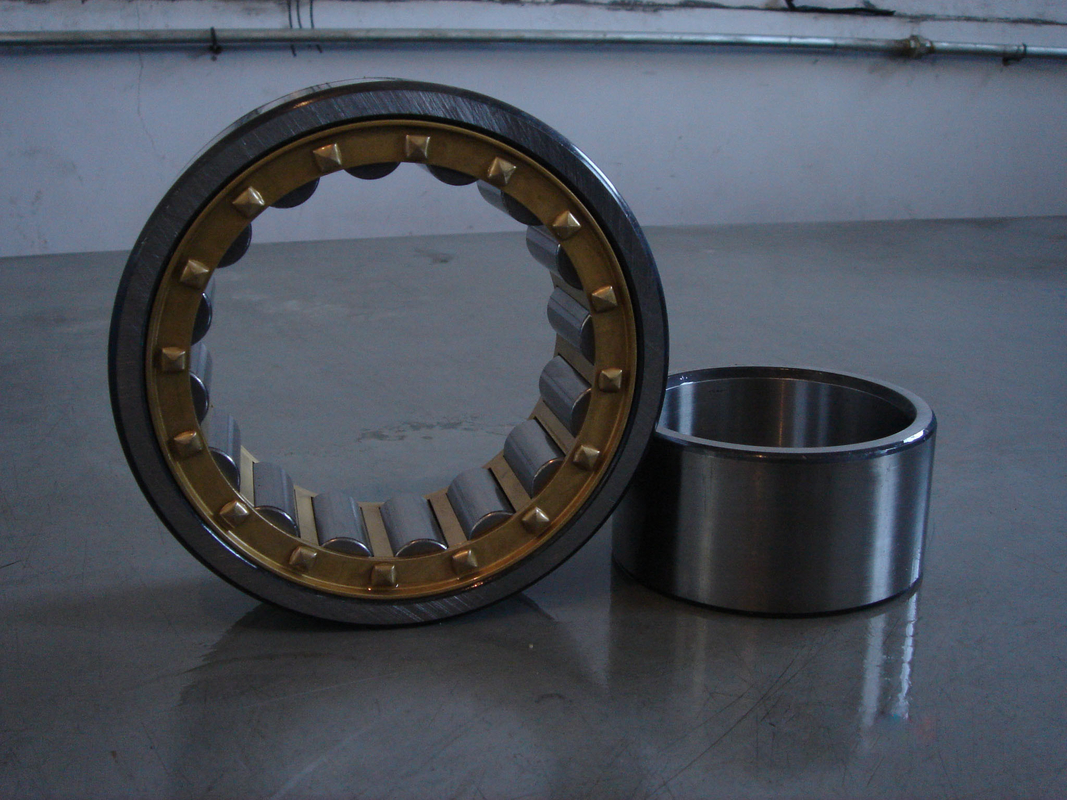

NU222 ECP cylindrical roller bearing, 110x200x38mm,Chrome steel material

Description:Single row cylindrical roller bearing
Type:NU222 ECP   cylindrical roller bearing
Dimension: 110X200X38 mm/Metic
ID(inner diameter)/Bore: 110 mm
OD(outer diameter):200 mm
Width/Height/thickness:38 mm
Quantity: One Bearing
Dynamic load rating Cr: 335 KN
Static load rating Cor: 365 KN
Limiting Speed:
Reference speed: 3600 r/min
limiting speed: 4000 r/min
Weight:4.8 kgs
The NU222 ECP bearing forging material:GCr15SiMn  GCr15, Chrome steel
TheNU222 ECP bearing  cage type: brass  cage or steel cage
The NU222 ECP bearing delivery time:10-20 days
The NU222 ECP bearing package:standard export wooden case or carton boxes.
NU222 ECP cylindrical roller bearings are separable bearings,the rollers are guided by the two ribs of bearing rings.The cage,rollers and guide ring are assembled to a unit, and can be separated from the other ring. These bearings are easy to be mounted and dismounted,especially inner and outer rings interference fit with shafts and housings.

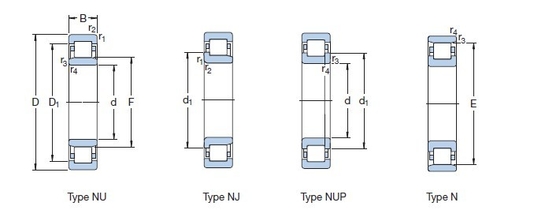

The structures of cylindrical roller bearings are distinguished by ribs.Type N has inner ring with two ribs and outer ring without rib;type NU has outer ring with two ribs and inner ring without rib; type NJ has inner ring with rib and outer ring with two ribs, and can carry certain axial loads in one direction;type NF has inner ring with two ribs and outer ring with rib.


The bearing NU222ECP  application:
Rigid stranders
Tubular stranders
Bow skip stranders
Double Twist Bunchers
Drum Twister Stranders
Planetary stranders
Worm gear
Screw Drives
Turbine engine mainshafts
Transmissions
large-size generators,
 machine tool spindles,
axle boxes,
bent axles of diesel engines,
gearboxes
Mechanical presses
Electrical motors
Pumps and compressors
Traction motors for railway vehiches
Axle boxes for railway vehicles
Steel mills
 And so on..
