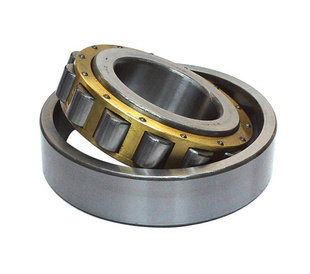

NJ322 ECP cylindrical roller bearing with standard cage, 110x240x50 mm,in stock

Large Image : NJ322 ECP cylindrical roller bearing with standard cage, 110x240x50 mm,in stock

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NJ322 ECP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

NJ322 ECP cylindrical roller bearing with standard cage, 110x240x50 mm,in stock

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

110

240

NJ322 ECP

530

540

Description:Single row cylindrical roller bearing
Type:NJ322 ECP cylindrical roller bearing
Dimension: 110X240X50 mm/Metic
ID(inner diameter)/Bore: 110 mm
OD(outer diameter):240 mm
Width/Height/thickness:50 mm
The Bearing NJ322 ECP Applications:
The NJ322 ECP cylindrical roller bearing will working application: Cable Stranders,Worm gear, Screw Drives, Turbine engine mainshafts, Transmissions, large-size generators, machine tool spindles, axle boxes,bent axles of diesel engines, gearboxes, Mechanical presses, Electrical motors, Pumps and compressors, Traction motors for railway vehiches, Axle boxes for railway vehicles, Steel mills, And so on.

Meanwhile,we can supply the bearing as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
110	170	28	NU 1022 ML	128	166	2.3
110	200	38	NU 222 ECP	335	365	4.8
110	200	38	NJ 222 ECP	335	365	4.9
110	200	38	NUP 222 ECP	335	365	5
110	200	38	N 222 ECP	335	365	4.8
110	200	53	NU 2222 ECP	440	520	6.7
110	200	53	NJ 2222 ECP	440	520	6.85
110	200	53	NUP 2222 ECP	440	520	7
110	240	50	NU 322 ECP	530	540	11
110	240	50	NJ 322 ECP	530	540	11
