NJ422 single row cylindrical roller bearing dimension details,110x280x65mm

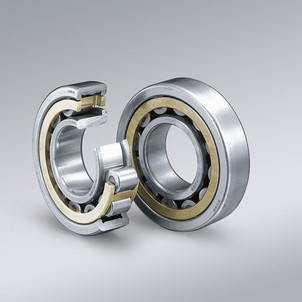

Large Image : NJ422 single row cylindrical roller bearing dimension details,110x280x65mm

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NJ422

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

NJ422 single row cylindrical roller bearing dimension details,110x280x65mm

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

110

280

NJ422

532

585

Description:Single row cylindrical roller bearing
Type:NJ422 cylindrical roller bearing
Dimension: 110X280X65 mm/Metic
ID(inner diameter)/Bore: 110 mm
OD(outer diameter):280 mm
Width/Height/thickness:65 mm

The NJ422  bearing forging material:GCr15SiMn GCr15, Chrome steel
The NJ422   bearing cage type: brass cage or steel cage
The NJ422   bearing delivery time:10-20 days

The NU422 Dimension standard:GB/T 283-2007

The package:standard export wooden case or carton boxes.

The Bearing NJ422 Applications:
The NJ422 cylindrical roller bearing will working application: Cable Stranders,Worm gear, Screw Drives, Turbine engine mainshafts, Transmissions, large-size generators, machine tool spindles, axle boxes,bent axles of diesel engines, gearboxes, Mechanical presses, Electrical motors, Pumps and compressors, Traction motors for railway vehiches, Axle boxes for railway vehicles, Steel mills, And so on.

Meanwhile,we can supply the bearing as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
110	170	28	NU 1022 ML	128	166	2.3
110	200	38	NU 222 ECP	335	365	4.8
110	200	38	NJ 222 ECP	335	365	4.9
110	200	38	NUP 222 ECP	335	365	5
110	200	38	N 222 ECP	335	365	4.8
110	200	53	NU 2222 ECP	440	520	6.7
110	200	53	NJ 2222 ECP	440	520	6.85
110	200	53	NUP 2222 ECP	440	520	7
110	240	50	NU 322 ECP	530	540	11
110	240	50	NJ 322 ECP	530	540	11
110	240	50	NUP 322 ECP	530	540	11
110	240	50	N322ECP	530	540	11
110	240	80	NU2322 ECP	780	900	17
110	240	80	NJ2322ECP	780	900	19
110	240	80	NUP2322 ECP	780	900	19
110	280	65	NU 422	532	585	20
110	280	65	NJ422	532	585	20
