Sell SKF NUP 326ECP cylindrical roller bearing dimension details,application

Large Image : Sell SKF NUP 326ECP cylindrical roller bearing dimension details,application

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NUP 326ECP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

Description:Single row cylindrical roller bearing,NUP Structure
Type:NUP 326 ECP cylindrical roller bearing
Dimension: 130X280X58 mm/Metic
ID(inner diameter)/Bore: 130 mm
OD(outer diameter):280 mm
Width/Height/thickness:58 mm

The NUP 326 ECP bearing forging material:GCr15SiMn GCr15, Chrome steel
The NUP 326 ECP bearing cage type: brass cage or steel cage
The NUP 326 ECP bearing delivery time:10-20 days

The NUP 326 ECP Dimension standard:GB/T 283-2007

The package:standard export wooden case or carton boxes.

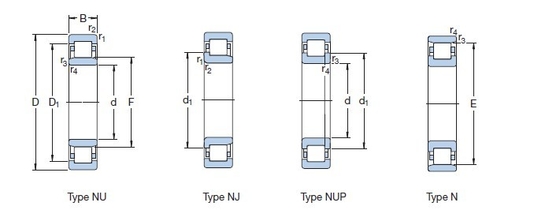

Sell SKF NUP 326ECP cylindrical roller bearing dimension details,application

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

130

280

NUP 326 ECP

720

750

19.6

The Bearing NUP 326 ECP Applications:
The NUP 326 ECP cylindrical roller bearing will working application: Cable Stranders,Worm gear, Screw Drives, Turbine engine mainshafts, Transmissions, large-size generators, machine tool spindles, axle boxes,bent axles of diesel engines, gearboxes, Mechanical presses, Electrical motors, Pumps and compressors, Traction motors for railway vehiches, Axle boxes for railway vehicles, Steel mills, And so on.

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
130	200	33	NU 1026 ML	165	224	3.8
130	230	40	NU 226 ECP	415	455	6.5
130	230	40	NJ 226 ECP	415	455	6.6
130	230	40	NUP 226 ECP	415	455	6.75
130	230	40	N 226 ECP	415	455	6.3
130	230	64	NU 2226 ECP	610	735	10.5
130	230	64	NJ 2226 ECP	610	735	12.2
130	230	64	NUP 2226 ECP	610	735	12.2
130	280	58	NU 326ECP	720	750	16.5
130	280	58	NJ 326 ECP	720	750	18.4
130	280	58	NUP 326 ECP	720	750	19.6

Meanwhile,we can supply the bearing as follows:

Sell SKF NUP 326ECP cylindrical roller bearing dimension details,application

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
130	200	33	148	-	2	NU 1026	32126	3.84	3200	3800
	250	80	158	-	3	NJ 626	42726	18.7	2200	3000
	280	58	-	243	4	N 326E	2326	17.8	1800	2200
	280	58	167	-	4	NU 326E	32326	17.9	1800	2200
	280	58	167	-	4	NJ 326E	42326	18.2	1800	2200
	280	93	-	243	4	N 2326	2626	29	1800	2200
	280	93	167	-	4	NU 2326	32626	28.7	1800	2200
	280	93	167	-	4	NJ 2326	42626	29	1800	2200
	340	78	185	-	5	NU 426	32426	41.5	1500	1900
	340	78	185	-	5	NJ 426	42426	41.7	1500	1900
