supply NJ 330 ECMsingle row cylindrical roller bearing, SKF code NJ 330 ECM Bearing

Large Image : supply NJ 330 ECMsingle row cylindrical roller bearing, SKF code NJ 330 ECM Bearing

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NJ 330 ECM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

Description: supply NJ 330 ECM single row cylindrical roller bearing, SKF bearing code NJ 330 ECM Bearing

Type:NJ 330 ECM cylindrical roller bearing
Dimension: 150X320X65 mm/Metic
ID(inner diameter)/Bore: 150 mm
OD(outer diameter):320 mm
Width/Height/thickness:65 mm

The NJ 330 ECM bearing forging material:GCr15SiMn GCr15, Chrome steel
The NJ 330 ECM bearing cage type: brass cage or steel cage
The NJ 330 ECM bearing delivery time:10-20 days

The NJ 330 ECM Dimension standard:GB/T 283-2007

The package:standard export wooden case or carton boxes.

supply NJ 330 ECMsingle row cylindrical roller bearing, SKF code NJ 330 ECM Bearing

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

150

320

NJ 330 ECM

900

965

27.5

The Bearing NJ 330 ECM Applications:
The NJ 330 ECM cylindrical roller bearing will working application: Cable Stranders,Worm gear, Screw Drives, Turbine engine mainshafts, Transmissions, large-size generators, machine tool spindles, axle boxes,bent axles of diesel engines, gearboxes, Mechanical presses, Electrical motors, Pumps and compressors, Traction motors for railway vehiches, Axle boxes for railway vehicles, Steel mills, And so on.

The SKF single row cylindrical roller bearing product list as follows:

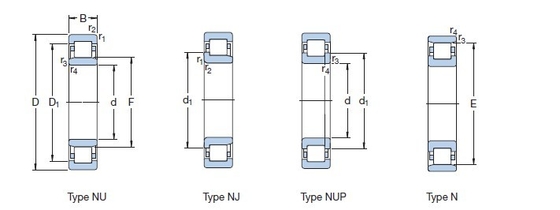

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
150	225	35	NU 1030 ML	194	275	4.85
150	270	45	NU 230 ECM	510	600	11.8
150	270	45	NJ 230 ECM	510	600	12
150	270	45	NUP 230 ECM	510	600	12
150	270	73	NU 2230 ECM	735	930	20
150	270	73	NJ 2230 ECM	735	930	20
150	320	65	NU 330 ECM	900	965	27.5
150	320	65	NJ 330 ECM	900	965	28

Meanwhile,we can supply the bearing as follows:

supply NJ 330 ECMsingle row cylindrical roller bearing, SKF code NJ 330 ECM Bearing

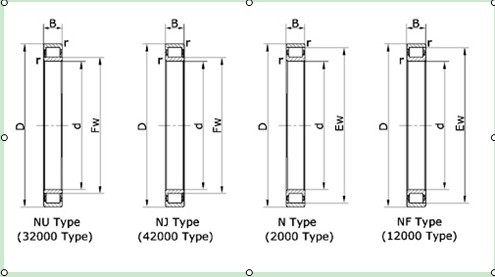

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
150	210	28	-	195	2.1	N1930	-	2.88	2400	3200
150	210	28	165	-	2.1	NU1930	-	2.96	2400	3200
150	270	45	-	238	3	N 230	2230	11.6	1900	2400
150	270	45	182	-	3	NU 230	32230	11.8	1900	2400
150	270	45	182	-	3	NJ 230	42230	12	1900	2400
150	270	73	182	-	3	NJ 2230	42530	18.1	1900	2400
150	320	65	-	277	4	N 330	2330	26.5	1700	2000
150	320	65	193	-	4	NU 330	32330	26.7	1700	2000
150	320	65	193	-	4	NJ 330	42330	26.9	1700	2000
150	320	108	-	277	4	NF 2330	12630	43.6	1700	2000
150	320	108	193	-	4	NU 2330	32630	45.7	1700	2000
150	320	108	193	-	4	NJ 2330	42630	45.7	1700	2000
