N 232 ECM cylindrical roller bearing, SKF N 232 ECM Dimension,drawing

Large Image : N 232 ECM cylindrical roller bearing, SKF N 232 ECM Dimension,drawing

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	N 232 ECM

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

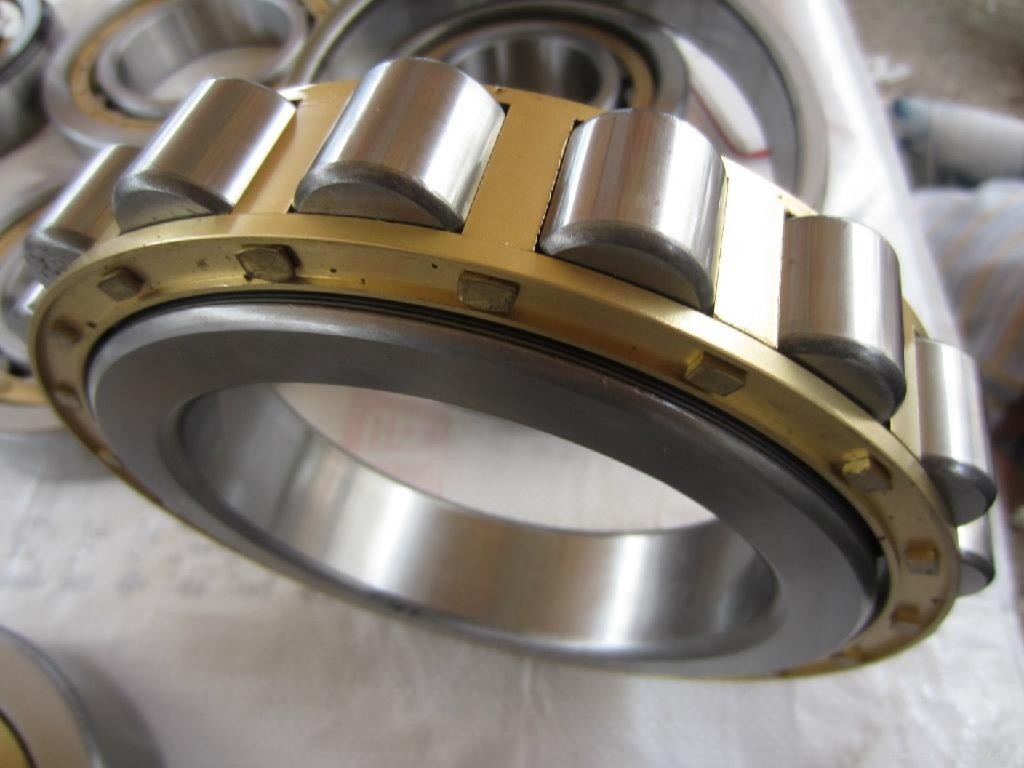

N 232 ECM cylindrical roller bearing, SKF N 232 ECM Dimension 160X290X48 mm

N 232 ECM Cylindrical roller bearing one bearing

N 232 ECM Cylindrical roller bearing and removable inner ring, this is a popular size that could be used

in many application that uses this size 160x290x48mm, Bearing is made of GCr15, GCr15SiMn chrome steel.

Item:N 232 ECM bearing

Type:cylindrical roller bearing

Cage:brass or steel material

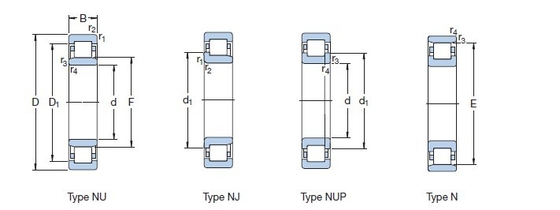

N 232 ECM cylindrical roller bearing, SKF N 232 ECM Dimension,drawing

Products name	Singler row cylindrical Roller Bearings N 232 ECM
Brand name	JHB or your requirment
Dimension (dXDxT)	160X290X48 mm
Basic load ratings(KN)	Dyn(C):585 KN
	Stat(C0):680 KN
Inner ring and outer ring material	GCr15, GCr15SiMn Chrome steel
Cage material	steel or brass cage
Precision	P0 P6 P5
Sealing	Open
Quality standard	ISO9001:2008 standard
Service	OEM service
Delivery date	Normally ready goods and stock within 20 days
Payment terms	A:100% L/C at sight B: 30% T/T in advance .70% against copy of B/L
Contact	lyjh@lyjhbearing.com sales@lyjhbearing.com
MSN	lyjhbearing@hotmail.com
Skype	Million556

The Bearing N 232 ECM Applications:
The N 232 ECM cylindrical roller bearing will working application: Cable Stranders,Worm gear, Screw Drives, Turbine engine mainshafts, Transmissions, large-size generators, machine tool spindles, axle boxes,bent axles of diesel engines, gearboxes, Mechanical presses, Electrical motors, Pumps and compressors, Traction motors for railway vehiches, Axle boxes for railway vehicles, Steel mills, And so on.

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
160	240	38	NU 1032 ML	229	325	6
160	290	48	NU 232 ECM	585	680	14.5
160	290	48	NJ 232 ECM	585	680	15
160	290	48	NUP 232 ECM	585	680	15.5
160	290	48	N 232 ECM	585	680	15.5
160	290	80	NU 2232 ECMA	930	1200	24
160	290	80	NJ 2232 ECMA	930	1200	24.5
160	340	68	NU 332 ECM	1000	1080	33
160	340	68	NJ 332 ECM	1000	1080	33.5
160	340	114	NU 2332 ECMA	1250	1730	53
160	340	114	NJ 2332 ECMA	1250	1730	53.5

Meanwhile,we can supply the bearing as follows:

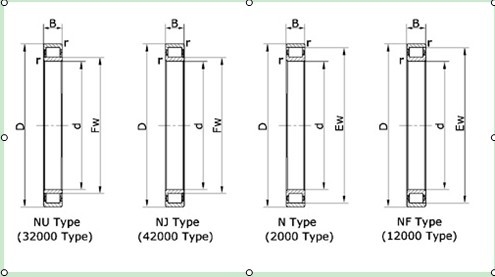

N 232 ECM cylindrical roller bearing, SKF N 232 ECM Dimension,drawing

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
160	240	38	180	-	1.5	NU1032	32132	5.98	1900	2400
160	290	48	-	255	3	N 232	2232	14.3	1800	2200
160	290	48	195	-	3	NU 232	42232	14.4	1800	2200
160	290	48	195	-	3	NJ 232	2232	14.2	1800	2200
160	290	80	193	-	3	NU 2232	32532	24.5	1800	2200
160	340	68	-	292	4	N 332	2332	30.8	1500	1800
160	340	68	208	-	4	NU 332	32332	31	1500	1800
160	340	68	208	-	4	NJ 332	42332	31.5	1500	1800
160	340	114	208	-	4	NU 2332	32632	54.5	1500	1800

Model	Size
YRTS460	460 x 600 x 70
YRTS395	395 x 525 x 65
YRTS325	325 x 450 x 60
YRTS260	260 x 385 x 55
YRTS200	200 x 300 x 45
YRT1030	1030 x 1300 x 145
YRT950	950 x 1200 x 132
YRT850	850 x 1095 x 124
YRT650	650 x 870 x 122
YRT580	580 x 750 x 90
YRT460	460 x 600 x 70
YRT395	395 x 525 x 65
YRT325	325 x 450 x 60
YRT260	260 x 385 x 55
YRT180	180 x 280 x 43
