NU 2338 ECMA single row cylindrical roller bearing, 190x400x132 mm, NU 2338 ECMA bearing

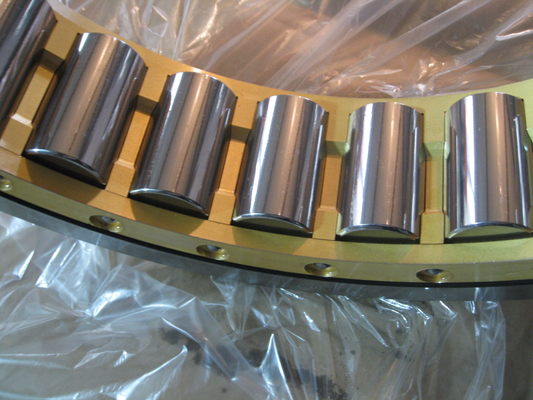

Large Image : NU 2338 ECMA single row cylindrical roller bearing, 190x400x132 mm, NU 2338 ECMA bearing

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NU 2338 ECMA

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

· Structure: NU 2338 ECMA single row cylindrical roller bearing, 190x400x132 mm,NU 2338 ECMA bearing

           Type: Roller
         ·Brand Name: JHB or your requirement
        · Model Number: NU 2338 ECMA

         ID(inner diameter )/Bore: 190 mm
         OD(outer diameter): 400 mm
         Width/Height/thickness(T):132 mm
· Precision Rating: P0 P6 P5
· Seals Type: Open Type
· Number of Row: One Row
· Place of Origin: China (Mainland)
· Name: single row cylindrical Roller Bearing
· HS code: 8482500000
· Material: GCr15 GCr15SiMn Chrome steel
· Quality: ISO Standard
· Housing: No
· Application: Metallurgy
· MOQ: 1 Piece
· Stock: Available
· Lead time: if unavailable ,within 10-20 days
The Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The package: standard export wooden case or carton boxes.

NU 2338 ECMA single row cylindrical roller bearing, 190x400x132 mm, NU 2338 ECMA bearing

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

190

400

132

NU 2338 ECMA

1830

2550

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
190	290	46	NU 1038 ML	347	500	11
190	340	55	NU 238 ECMA	800	965	24
190	340	55	NJ 238 ECMA	800	965	24.5
190	340	55	NUP 238 ECMA	800	965	25
190	340	92	NU 2238 ECMA	1220	1600	39
190	400	78	NU 338 ECM	1140	1500	50
190	400	132	NU 2338 ECMA	1830	2550	82.5

Meanwhile,we can supply the bearing as follows:

NU 2338 ECMA single row cylindrical roller bearing, 190x400x132 mm, NU 2338 ECMA bearing

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
190	260	42	208	-	2	NU 2938	2032938	6.45	2000	2800
190	290	46	215	-	2.1	NU1038	32138	11	2000	2800
190	340	55	-	302	4	N238	2238	22.9	1600	1900
190	340	55	231	-	4	NU 238	32238	21.6	1600	1900
190	340	55	231	-	4	NJ 238	42238	22	1600	1900
190	340	92	-	299	4	N2238	-	38.6	1600	1900
190	340	92	231	-	4	NU 2238	32538	38.6	1600	1900
190	400	78	-	345	5	N 338	2338	50.2	1200	1500
190	400	78	245	-	5	NU 338	32338	48.5	1200	1500
