NU1040MA single row cylindrical roller bearing, 200x310x51 mm, NU1040MA with brass cage

All Products

Slewing bearing (633)

Turntable bearing (73)

Pinion gear (22)

Cylindrical roller bearing (397)

Rolling mill Bearing (132)

Tapered roller bearing (103)

Machine Parts (115)

Tandem Extruder Bearing (290)

Spherical roller bearing (145)

crossed roller bearing (215)

YRT Rotary table bearing (39)

Main Spindle Ball Bearing (646)

Thin section ball bearing (157)

Full complement cylindrical roller bearing (172)

Split roller bearing (135)

Spherical roller thrust bearing (102)

Here thanks for help. We had got the bearing and checked them. After the working,they are working perfect. I will be keep you in mind !

—— Mr Scott

I'm Online Chat Now

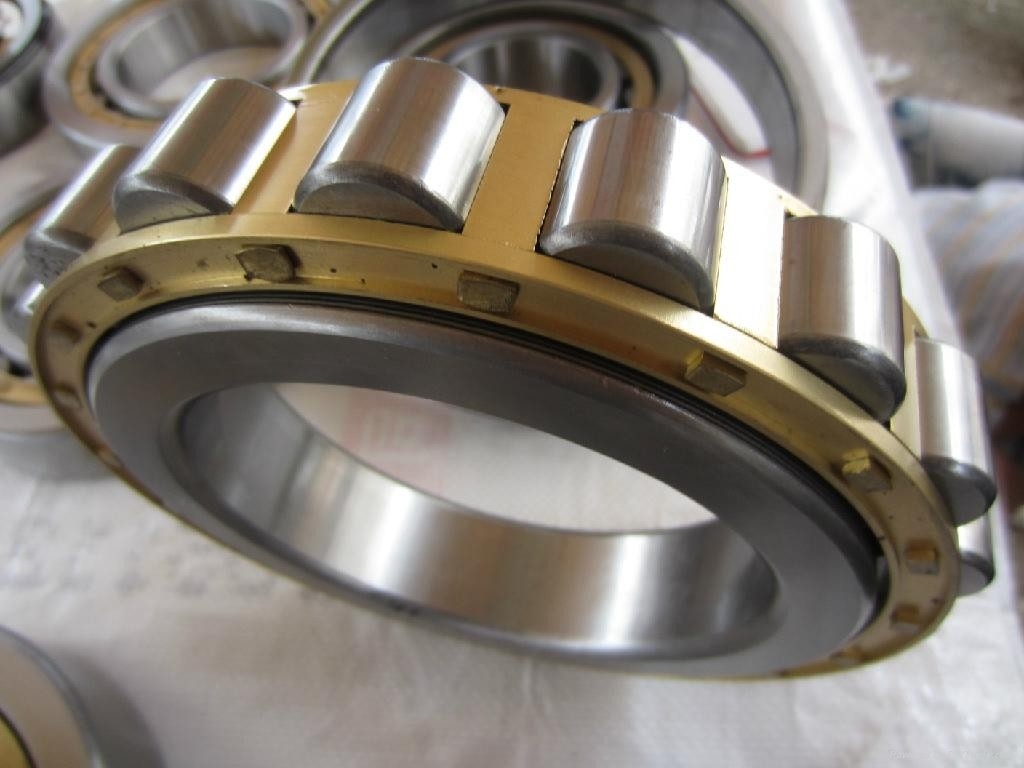

NU1040MA single row cylindrical roller bearing, 200x310x51 mm, NU1040MA with brass cage

Large Image : NU1040MA single row cylindrical roller bearing, 200x310x51 mm, NU1040MA with brass cage

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NU 1040 MA

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

· Structure: NU 1040 MA single row cylindrical roller bearing, 200x310x51 mm,NU 1040 MA bearing

           Type: Roller
         ·Brand Name: JHB or your requirement
        · Model Number: NU 1040 MA

         ID(inner diameter )/Bore: 200 mm
         OD(outer diameter): 310 mm
         Width/Height/thickness(T):51 mm
· Precision Rating: P0 P6 P5
· Seals Type: Open Type
· Number of Row: One Row
· Place of Origin: China (Mainland)
· Name: single row cylindrical Roller Bearing
· HS code: 8482500000
· Material: GCr15 GCr15SiMn Chrome steel
· Quality: ISO Standard
· Housing: No
· Application: Metallurgy
· MOQ: 1 Piece
· Stock: Available
· Lead time: if unavailable ,within 10-20 days
The Bearing Inner ring and outer ring hardness: 58-62HRC
The manufacture process including: Lathe process, Heat treatment process, Grinding process, Assembly process and final inspect process and on on.
The package: standard export wooden case or carton boxes.

NU1040MA single row cylindrical roller bearing, 200x310x51 mm, NU1040MA with brass cage

Basic Dimensions(mm)

Bearing Designations

Bearing ratings (KN)

Weight

Cor

(KGS)

200

310

NU 1040 MA

380

570

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B		Cr	Cor	(KGS)
200	310	51	NU 1040 MA	380	570	15
200	360	58	NU 240 ECMA	850	1020	28.5
200	360	58	NJ 240 ECMA	850	1020	29
200	360	58	NUP 240 ECMA	850	1020	29.5
200	360	98	NU 2240 ECMA	1370	1800	46
200	420	90	NU 340 ECMA	1230	1630	56
200	420	138	NU 2340 ECMA	1980	2800	97
200	420	135	NJ 2340 ECMA	1980	2800	98

Meanwhile,we can supply the bearing as follows:

NU1040MA single row cylindrical roller bearing, 200x310x51 mm, NU1040MA with brass cage

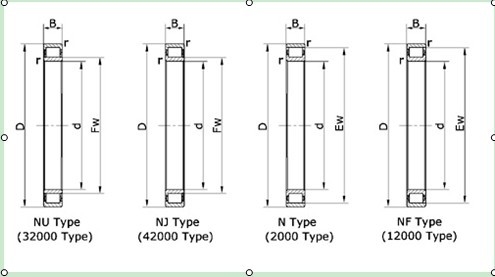

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	rmin				Grease	Oil
200	310	51	-	281	2	N 1040	42140	10.2	1900	2400
200	310	51	229	-	2.1	NU 1040	32140	14.3	1900	2400
200	310	51	229	-	2.1	NJ 1040	42140	14.7	1900	2400
200	310	66	229	-	3	NU2040	-	18.5	1900	2400
200	360	58	-	316	4	N 240	2240	26.8	1500	1800
200	360	58	244	-	4	NU 240	32240	26.5	1500	1800
200	360	58	244	-	4	NJ 240	42240	27.1	1500	1800
200	420	138	-	360	4	N 2340	2640	94.5	1200	1500
200	420	165	260	-	5	NU 3340	3032340	118	1200	1500
