NJ 1076 MA cylindrical roller bearing, 380X560X82mm, NJ 1076 MA+HJ1076 Bearing price

Large Image : NJ 1076 MA cylindrical roller bearing, 380X560X82mm, NJ 1076 MA+HJ1076 Bearing price

Product Details:

Place of Origin:	China
Brand Name:	JHB or OEM
Certification:	ISO9001:2008 or Quality Certificate
Model Number:	NJ 1076 MA

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Standard export wooden case
Delivery Time:	in stock, if Ex-stock, It will need 15- 20 days
Payment Terms:	T/T,L/C
Supply Ability:	500 PCS/Month

Contact Now

Detailed Product Description

Precision Rating:	P5 P6 P0	Seals Type:	No Seal
Number Of Row:	Single Row

Description: Single row cylindrical roller bearing,

Type: NJ 1076 MA cylindrical roller bearing, Angle ring:HJ1076,NJ 1076 MA+HJ1076 Bearing

Dimension: 380X560X82 mm/Metic

ID(inner diameter)/Bore: 380 mm

OD(outer diameter):560 mm

Width/Height/thickness:82 mm

Quantity: One Bearing

The Number or roller: One

Lubrication: Oil or Grease

The forging material:GCr15SiMn GCr15, Chrome steel

The cage type: brass cage or steel cage

The delivery time: in stock, if we have no stock, the manufacture time:10-20 days

The package: standard export wooden case or carton boxes.

The NJ 1076 MA cylindrical roller bearings are separable bearings,the rollers are guided by the two ribs of bearing rings.The cage,rollers and guide ring are assembled to a unit, and can be separated from the other ring. These bearings are easy to be mounted and dismounted, especially inner and outer rings interference fit with shafts and housings.

The NJ 1076 MA cylindrical roller bearing will working application: Cable Stranders,Worm gear, Screw Drives, Turbine engine mainshafts, Transmissions, large-size generators, machine tool spindles, axle boxes,bent axles of diesel engines, gearboxes, Mechanical presses, Electrical motors, Pumps and compressors, Traction motors for railway vehiches, Axle boxes for railway vehicles, Steel mills, And so on.

NJ 1076 MA cylindrical roller bearing, 380X560X82mm, NJ 1076 MA+HJ1076 Bearing price

Basic Dimensions(mm)

Bearing Designations

Precision Rating

basic load rating

(KN)

Limiting Speed

(r/min)

Weight

(KGS)

reference

Limiting

380

560

NJ 1076 MA

P5 P6 P0

1140

1930

1200

1600

JinHang Precision Bearing mainly export high quantities NJ 1076 MA Bearing and relative products, we have huge stocks for NJ 1076 MA Bearing and relative items, we supply high quality NJ 1076 MA Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in NJ 1076 MA Bearing, please email us lyjh@lyjhbearing.com so we will contact you directly.

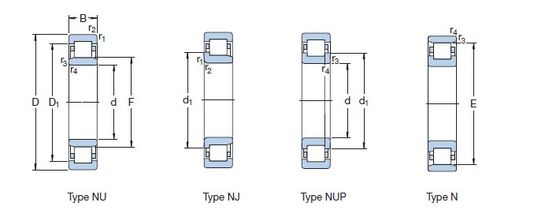

The SKF single row cylindrical roller bearing product list as follows:

Basic Dimensions(mm)			Bearing Designations	Bearing ratings (KN)		Weight
d	D	B	Bearing Designations	Cr	Cor	(KGS)
360	540	82	NU 1072 MA	1100	1830	68
360	650	170	NU 2272 MA	2920	4900	250
380	560	82	NU 1076 MA	1140	1930	71
380	560	82	NJ 1076 MA	1140	1930	73
380	680	175	NU 2276 ECMA	3140	5500	275
400	600	90	NU 1080 MA	1380	2320	93
420	620	90	NU 1084 MA	1420	2450	96
440	650	94	NU 1088 MA	1510	2650	105
460	680	100	NU 1092 MA	1650	2850	115
460	830	165	NU 1292 MA	4180	6800	415
460	830	212	NU 2292 MA	5120	8650	530
480	700	100	NU 1096 MA	1680	3000	130
500	720	100	NU 10/500 MA	1720	3100	135
500	920	185	NU 12/500 MA	5280	8500	585
530	780	112	NU 10/530 MA	2290	4050	190
530	780	145	NU 20/530 ECMA	3740	7350	255
560	820	115	NU 10/560 MA	2330	4250	210
560	820	150	NU 20/560 ECMA	3800	7650	290
560	1030	206	NU 12/560 MA	7210	11200	805
600	870	118	NU 10/600 N2MA	2750	5100	245
600	870	155	NU 20/600 ECMA	4180	8000	325
600	1090	155	NU 2/600 ECMA/HB1	5610	9800	710
630	920	128	NU 10/630 ECN2MA	3410	6200	285
630	920	170	NU 20/630 ECMA	4730	9500	400
630	1150	230	NU 12/630 ECMA	8580	13700	1100
670	980	136	NU 10/670 ECMA	3740	6800	350
670	980	180	NU 20/670 ECMA	5390	11000	480
710	1030	140	NU 10/710 ECN2MA	4680	8500	415
710	1030	185	NU 20/710 ECMA	5940	12000	540
750	1090	150	NU 10/750 ECN2MA	4730	8800	490
750	1090	195	NU 20/750 ECMA	7040	14600	635
800	1150	200	NU 20/800 ECMA	7040	14600	715

Meanwhile,we can supply the bearing as follows:

NJ 1076 MA cylindrical roller bearing, 380X560X82mm, NJ 1076 MA+HJ1076 Bearing price

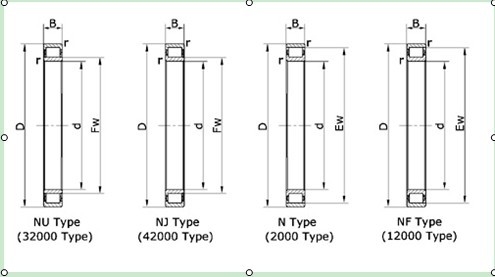

Boundary dimensions						Designations		Mass	Limiting speeds
mm						Current	Original	kg	r/min
d	D	B	Fw	Ew	r_min	Current	Original	kg	Grease	Oil
280	350	33	299	-	2.1	NJ1856	-	7.31	1500	1800
	360	30	-	339	4	N1856X3	-	7.76	1400	1700
	380	46	-	354	2.1	N1956	-	15.3	1400	1700
	380	46	306	-	3	NU1956	-	14.5	1400	1700
	420	65	-	384	4	N1056	2156	33	1400	1700
	420	82	316	-	4	NU2056	-	41.8	1400	1700
	420	65	316	-	4	NU 1056	32156	33.4	1400	1700
300	420	56	332	-	3	NU1960MA	-	23.4	1200	1500
	460	74	340	-	4	NU 1060	32160	44.4	1200	1500
	460	74	340	-	4	NJ 1060	42160	45.1	1200	1500
	460	118	340	-	4	NU 3060	3032160	72	1060	1340
	500	160	358	-	5	NU3160	-	135	1000	1300
	540	85	364	-	5	NU 260	32260	87.2	1000	1300
	620	109	385	-	7.5	NU 360	32360	166	900	1100
320	400	38	-	380	2.1	N1864	-	10.7	1100	1400
	440	72	-	408	3	N2964M	-	33.7	1200	1500
	480	74	360	-	4	NU 1064	32164	47	1100	1400
	480	74	360	-	4	NJ 1064	42164	47	1100	1400
	480	95	360	-	4	NU2064	-	61	1100	1400
340	520	57	-	470	4	N0068	7002168	45.5	950	1200
	520	82	385	-	5	NU1068	32168	62.6	955	1200
	520	106	385	-	5	NU2068	-	84.6	955	1200
	530	133.5	-	476	4	N 668	2768	117	880	1100
360	540	82	405	-	5	NU1072	32172	65.6	900	1100
	650	170	435	-	6	NU 2272	32572	263	850	1000
	750	224	465	-	7.5	NU 2372	32672	485	850	1000
380	480	60	-	451	2.1	N 2876	2002876	24.6	900	1100
	560	82	425	-	5	NU1076	32176	68.5	900	1100
	680	177	451	-	6	NU2276	-	282	700	900
400	540	65	438	-	4	NU 1980	1032980	42.7	950	1150
	600	90	450	-	5	NU 1080	32180	88.8	900	1100
	600	148	-	554	5	N3080	-	151	700	900
	600	148	458	-	5	NU 3080	3032180	145	700	900
	650	145	-	585	6	N 2180	2002780	190	700	900
420	620	90	470	-	5	NU1084	32184	96	700	900
440	546	46	468	-	2.5	NU 688	32788	26.5	730	920
	650	94	493	-	6	NU1088	32188	106	700	900
	720	122	-	648	6	N 1188	1002788	191	510	620
460	620	95	-	580	4	N 2992	2002992	82.4	500	630
	620	95	504	-	4	NU 2992	2032992	84	500	630
	760	240	529.3	-	7.5	NU3192	-	419	400	500
500	670	100	543	-	5	NU 29/500	20329/500	99.5	560	710
	720	100	556	-	6	NU10/500	-	137	400	500
530	710	106	578	-	5	NU 29/530	20329/530	123	400	500
560	820	115	625	-	6	NU10/560	-	205	380	460
600	730	60	635	-	3	NU18/600	-	49.2	400	500
	800	90	-	750	5	N19/600	-	115	380	460
	800	90	649	-	5	NU19/600	-	122	380	460
	800	118	650	-	5	NUP29/600	-	173	380	460
630	850	100	688	-	6	NU 19/630	10329/630	160	280	360
	850	128	685	-	6	NU 29/630	20329/630	206	280	360
670	820	69	708	-	4	NJ18/670	-	78.4	280	360
700	930	160	760	-	6	NU 6/700	327/700	295	310	390
710	870	74	750	-	4	NJ18/710	-	94.5	310	390
	950	106	-	890	6	N 19/710	10023/710	205	220	300
	950	106	775	-	6	NU 19/710	10329/710	207	220	300
800	1060	115	870	-	6	NU 19/800	10329/800	280	200	240
840	1040	125	-	985	3	N 6/840	27/840	240	200	240
850	1120	118	925	-	6	NU 19/850	10329/850	320	170	220
	1120	118	-	1059	6	NF19/850	-	282	170	220
	1120	155	917	-	6	NU 29/850	20329/850	425	170	220
870	1050	90	912	-	5	NJ18/870	-	152	170	220
880	950	60	898	-	2.5	NU18/880	-	36.8	200	240
	950	60	898	-	2.5	NUP18/880	-	39.4	200	240
950	1250	175	1024	-	7.5	NU 29/950	20329/950	563	140	170
	1250	224	-	1170	7.5	N 39/950	30029/950	745	140	170
1000	1210	92	-	1155	5	N18/1000	-	206	120	150
	1220	100	1053	-	6	NU 18/1000	10328/1000	265	120	150
	1220	128	1058	-	6	NU28/1000	-	319	120	150
	1220	128	-	1165	6	NF28/1000	-	350	120	150
	1220	128	1053	-	6	NUP 18/1000	10928/1000	287	120	150
	1320	185	1082	-	7.5	NU 29/1000	20329/1000	700	110	140
1060	1280	165	1120		6	NU38/1060	-	427	120	150
	1280	128	-	1225	6	N 28/1060	20028/1060	360	110	140
	1400	150	1162	-	7.5	NU 19/1060	10329/1060	683	120	150
	1400	195	1142	-	7.5	NU 29/1060	20329/1060	870	120	150
	1400	250	1146	-	7.5	NU 39/1060	30329/1060	1070	120	150
	1500	325	-	1390	9.5	N 30/1060	30021/1060	1900	-	-
1120	1360	106	1182	-	6	NJ 18/1120	10428/1120	335	-	-
	1360	180	1180		6	NU38/1120	-	547	-	-
	1580	345	1231	-	9.5	NU 30/1120	30321/1120	2150	-	-
1180	1420	106	1245	-	6	NU18/1180	-	328	-	-
	1420	106	1245	-	6	NJ 18/1180	10428/1180	350	-	-
	1540	206	1258	-	7.5	NU 29/1180	20329/1180	1050	-	-
	1540	272	-	1466	7.5	N 39/1180	30029/1180	1400	-	-
1250	1750	290	-	1635	9.5	N 20/1250	20021/1250	2320	-	-
	1630	170	1350		7.5	NU19/1250	-	952	-	-
1320	1600	122	1395	-	6	NU 18/1320	10328/1320	530	-	-
1320	1600	122	1385	-	6	NJ18/1320	-	525	-	-
	1720	230	1420	-	7.5	NU 29/1320	20329/1320	1500	-	-
	1720	175	1424		7.5	NU19/1320	-	1100	-	-
	1720	300	-	1640	7.5	N 39/1320	30029/1320	1900	-	-
	1850	400	-	1737	12	N 30/1320	30021/1320	3550	-	-
1400	1700	175	-	1637	7.5	N 28/1400	20028/1400	860	-	-
1900	2300	175	-	2204	9.5	N 18/1900	10028/1900	1480	-	-
