 Four point contact bearings VLI200744N:
– these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

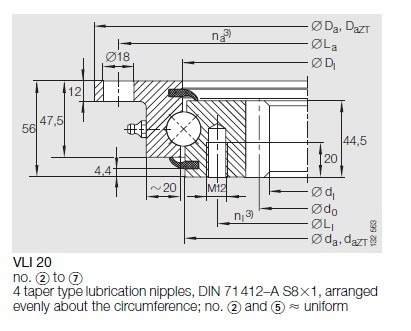

VLI20 mean: Four point contact bearing, light series 20, internal gear teeth, selectable internal clearance,

                        sealed, lubrication nipple on circumference of ring without teeth

VLI200744N  Bearing,VLI200744N Slewing ring, VLI200744N  slewing bearing Specifications

Four point contact ball slewing bearing  VLI200744N  Dimension: 848x648x56 mm
 1.High load-carrying capability

2.Ability to accept the combined loads;axial ,radial and tilting moments

3.Flexibility with product design.

4.42CrMo/50Mn material be used to make slewing ring bearing

 VLI200744N   Bearing, VLI200744N   Slewing ring, VLI200744N slewing bearing  technology data as follow:

Dimension: 848X648X56 mm/Metic

ID(inner diameter)/Bore: 848 mm

OD(outer diameter):648 mm

Width/Height/thickness:56 mm

Axial Ca: 211 KN

Axial Cor:530 KN

Radial Ca:138 KN

Radial Cor:198KN

 VLI200744N   Bearing, VLI200744N  Slewing ring, VLI200744N  slewing bearing Application:

Foundry operation

Construction machinery (e.g. crane, dragline excavator, vibratory roller)

Vehicles and vehicle attachments (e.g. lorry-mounted crane)

Fork lift trucks and fork lift truck attachments

Sewage treatment plant

Wind power equipment

Robots

Antennae

Machine tools

Measuring equipment

Medical equipment

JinHang Precision Bearing mainly  export high quantitiesVLI200744N   Slewing Bearing and relative products, we have huge stocks for VLI200744N   slewing ring  and relative items, we supply high quality  VLI200744N   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in   VLI200744N   Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
