VLU200644 slewing Bearing, VLU200644 Slewing ring without gear, JB/T 10471-2004 standard

VLU200644  Bearing,VLU200644  Slewing ring, VLU200644  slewing bearing Specifications

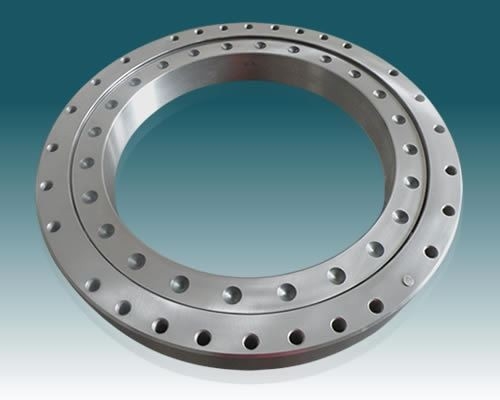

Type : VLU200644  Four point contact ball slewing bearing without gear teeth ,  Dimension: 748x534x56 mm
 1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing

VLU200644 Bearing, VLU200644   Slewing ring, VLU200644  slewing bearing  technology data as follow:
Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing
Dimension: 748X534X56 mm/Metic
ID(inner diameter)/Bore: 748 mm
OD(outer diameter):534 mm
Width/Height/thickness:56 mm
Axial Ca: 200 KN
Axial Cor:455 KN
Radial Ca:131 KN
Radial Cor:171KN

Four point contact bearings VLU200644:
– these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

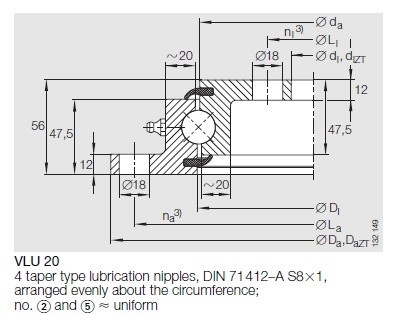

   VLU20: Four point contact bearing, light series 20, without gear teeth, selectable internal clearance,
      sealed, lubrication nipple on circumference of outer ring




VLU200644    Bearing, VLU200644   Slewing ring, VLU200644 slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly  export high quantities VLU200644   Slewing Bearing and relative products, we have huge stocks for VLU200644   slewing ring  and relative items, we supply high quality  VLU200644   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  VLU200644  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
