VLU200844 slewing Bearing, VLU200844 Slewing ring supplier, JB/T 10471-2004 standard

VLU200844  Bearing,VLU200844  Slewing ring, VLU200844  slewing bearing Specifications

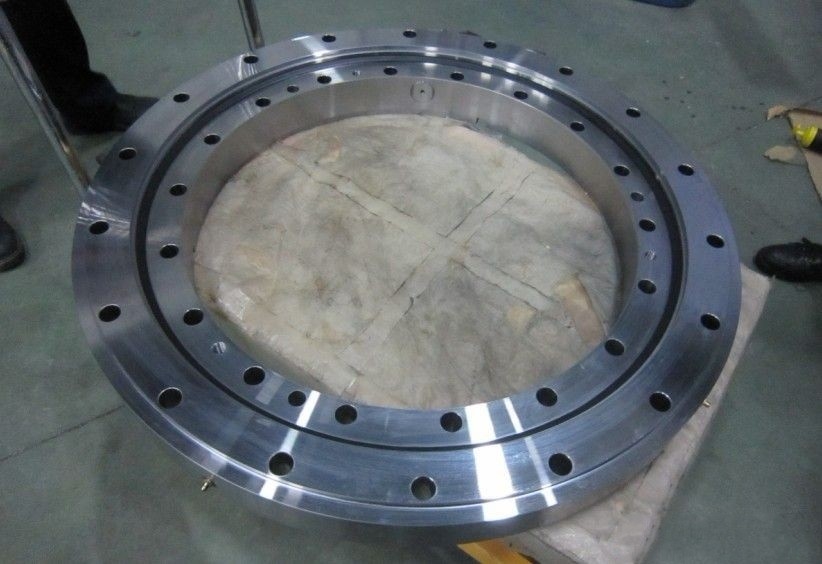

Type : VLU200844  Four point contact ball slewing bearing without gear teeth ,  Dimension: 948x734x56 mm
 1.High load-carrying capability
2.Ability to accept the combined loads;axial ,radial and tilting moments
3.Flexibility with product design.
4.42CrMo/50Mn material be used to make slewing ring bearing

VLU200844 Bearing, VLU200844   Slewing ring, VLU200844  slewing bearing  technology data as follow:
Manufacture standard:JB/T 10471-2004 rolling bearing  slewing bearing
Dimension: 948X734X56 mm/Metic
ID(inner diameter)/Bore: 948 mm
OD(outer diameter):734 mm
Width/Height/thickness:56 mm
Axial Ca: 222 KN
Axial Cor:600 KN
Radial Ca:145 KN
Radial Cor:224 KN

Four point contact bearings VLU200844:
– these slewing rings without preload are robust and proven under very demanding operation; they place only slight demands on the flatness and perpendicularity of the adjacent construction
– they are suitable for applications with low requirements for accuracy and rigidity of the bearing arrangement, for example in simple metalworking machines, wind power equipment and construction machinery

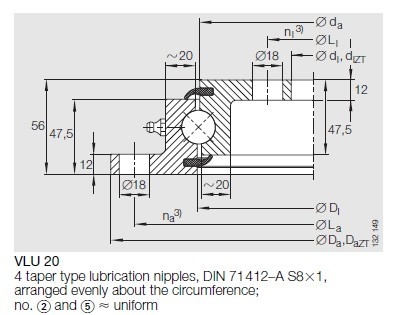

   VLU20: Four point contact bearing, light series 20, without gear teeth, selectable internal clearance,
      sealed, lubrication nipple on circumference of outer ring




VLU200844    Bearing, VLU200844   Slewing ring, VLU200844 slewing bearing Application:
Foundry operation
Construction machinery (e.g. crane, dragline excavator, vibratory roller)
Vehicles and vehicle attachments (e.g. lorry-mounted crane)
Fork lift trucks and fork lift truck attachments
Sewage treatment plant
Wind power equipment
Robots
Antennae
Machine tools
Measuring equipment
Medical equipment
JinHang Precision Bearing mainly  export high quantities VLU200844   Slewing Bearing and relative products, we have huge stocks for VLU200844   slewing ring  and relative items, we supply high quality  VLU200844   four point contact ball  Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in  VLU200844  Bearing, please email us :lyjh@lyjhbearing.com    so we will contact you directly.
